32-LED Roof Light Bar for 1/10 RC Crawlers – Fits TRX4, SCX10, D90
32-LED Roof Light Bar for 1/10 RC Crawlers – Fits TRX4, SCX10, D90

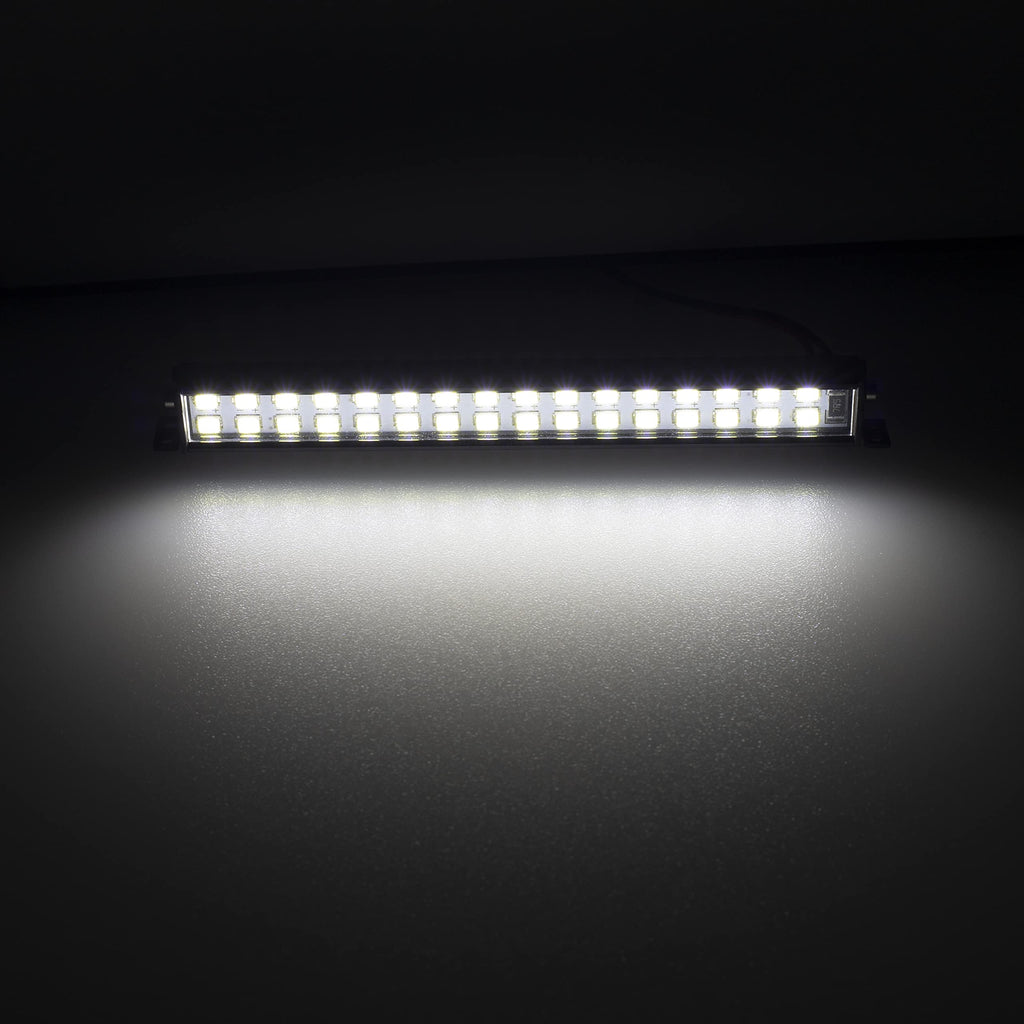

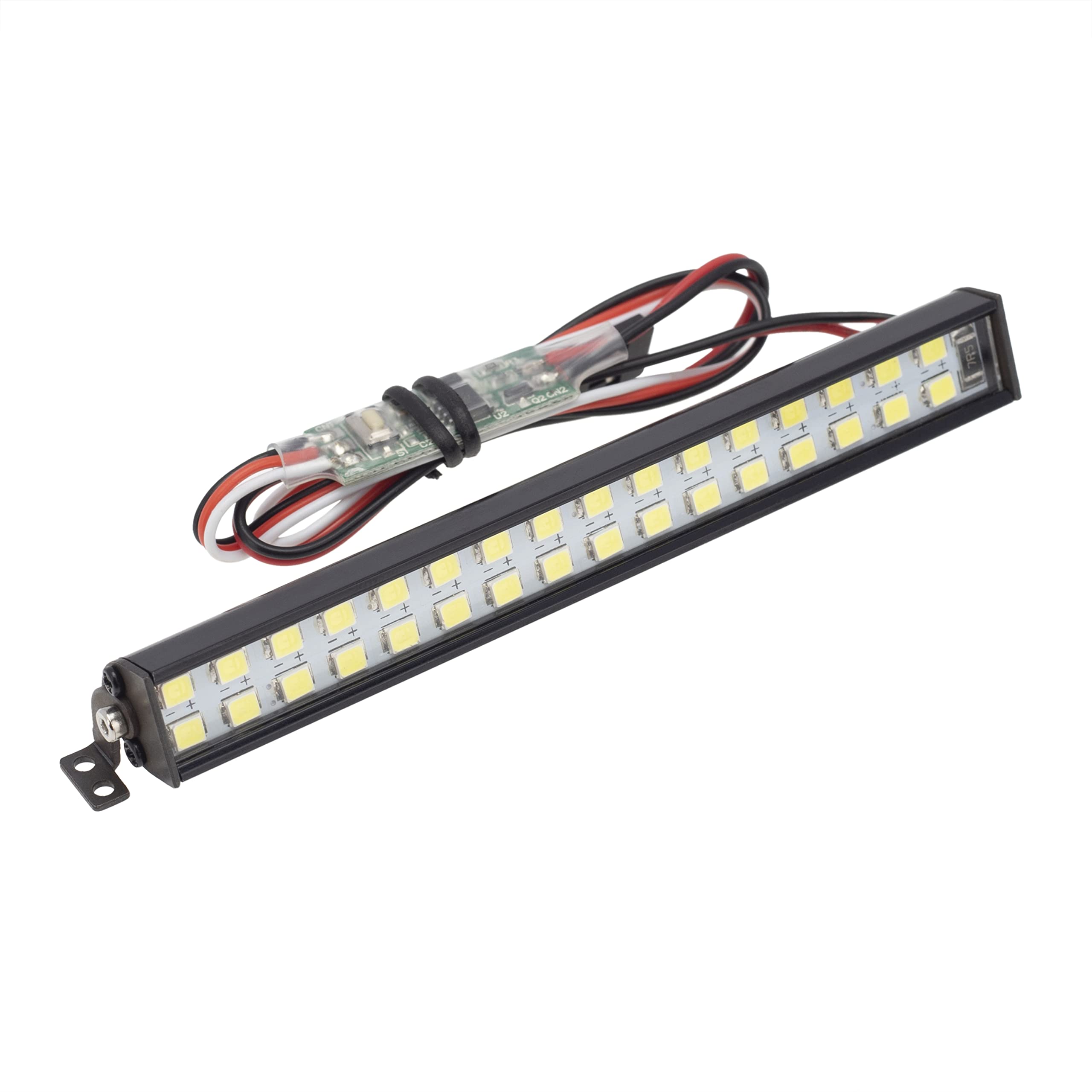

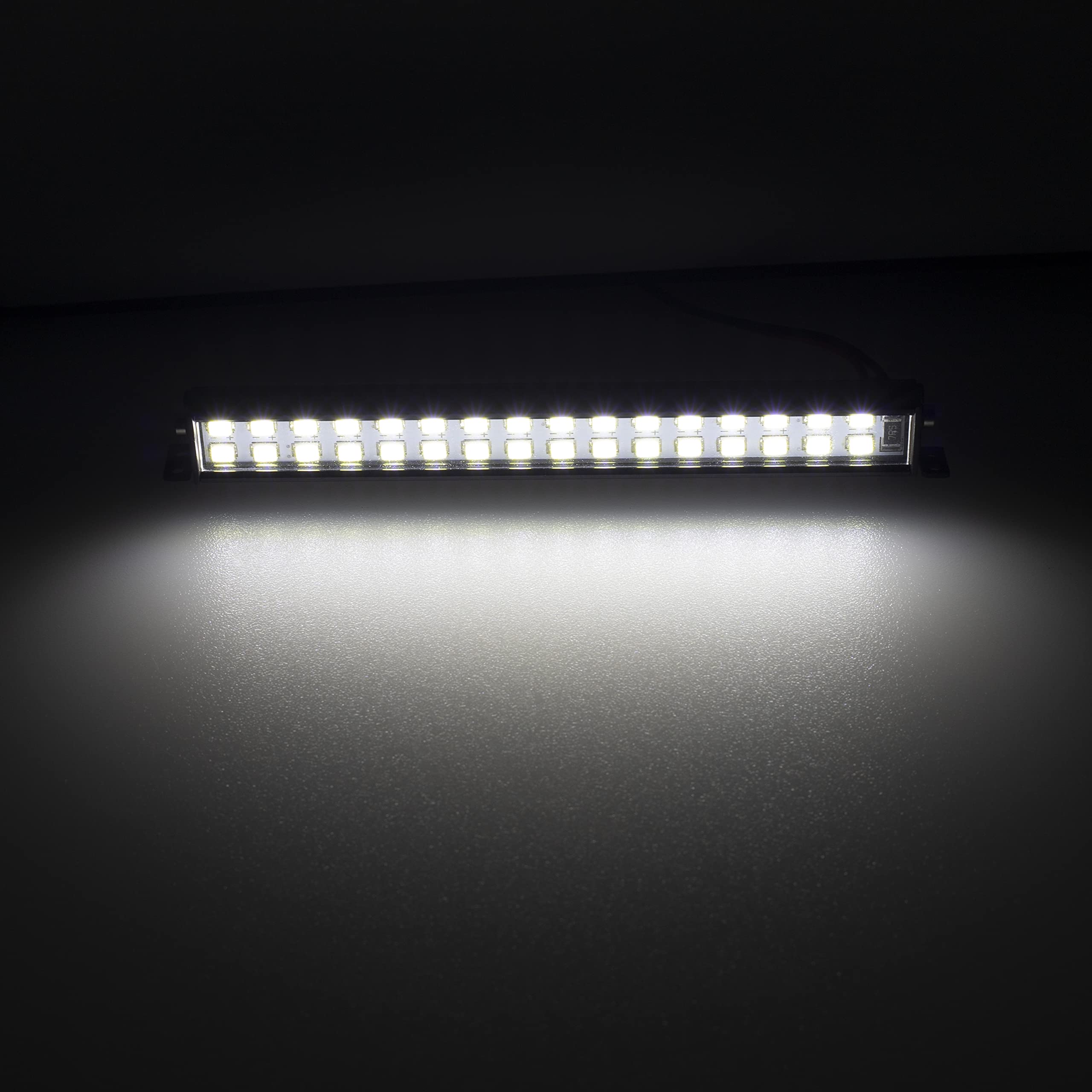

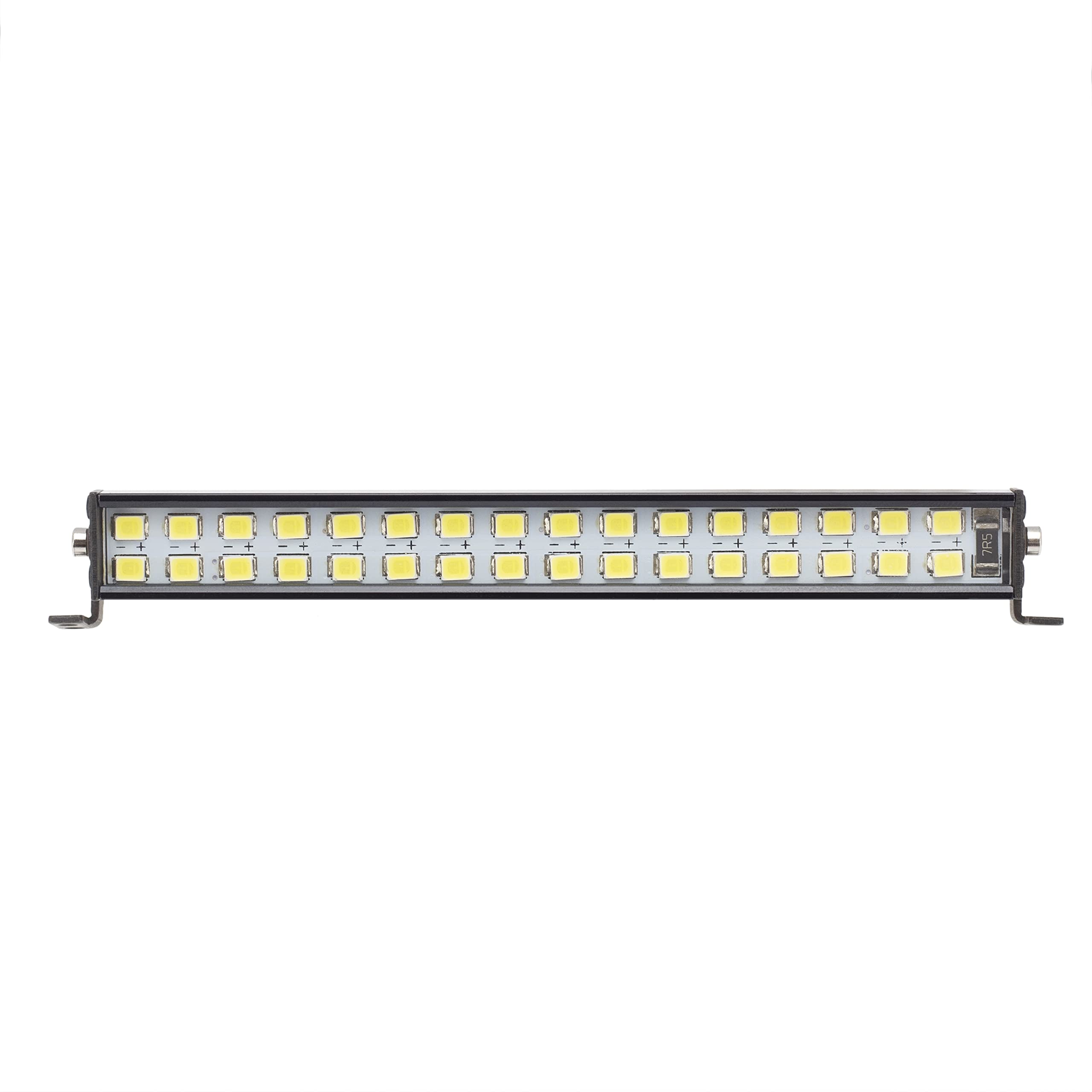

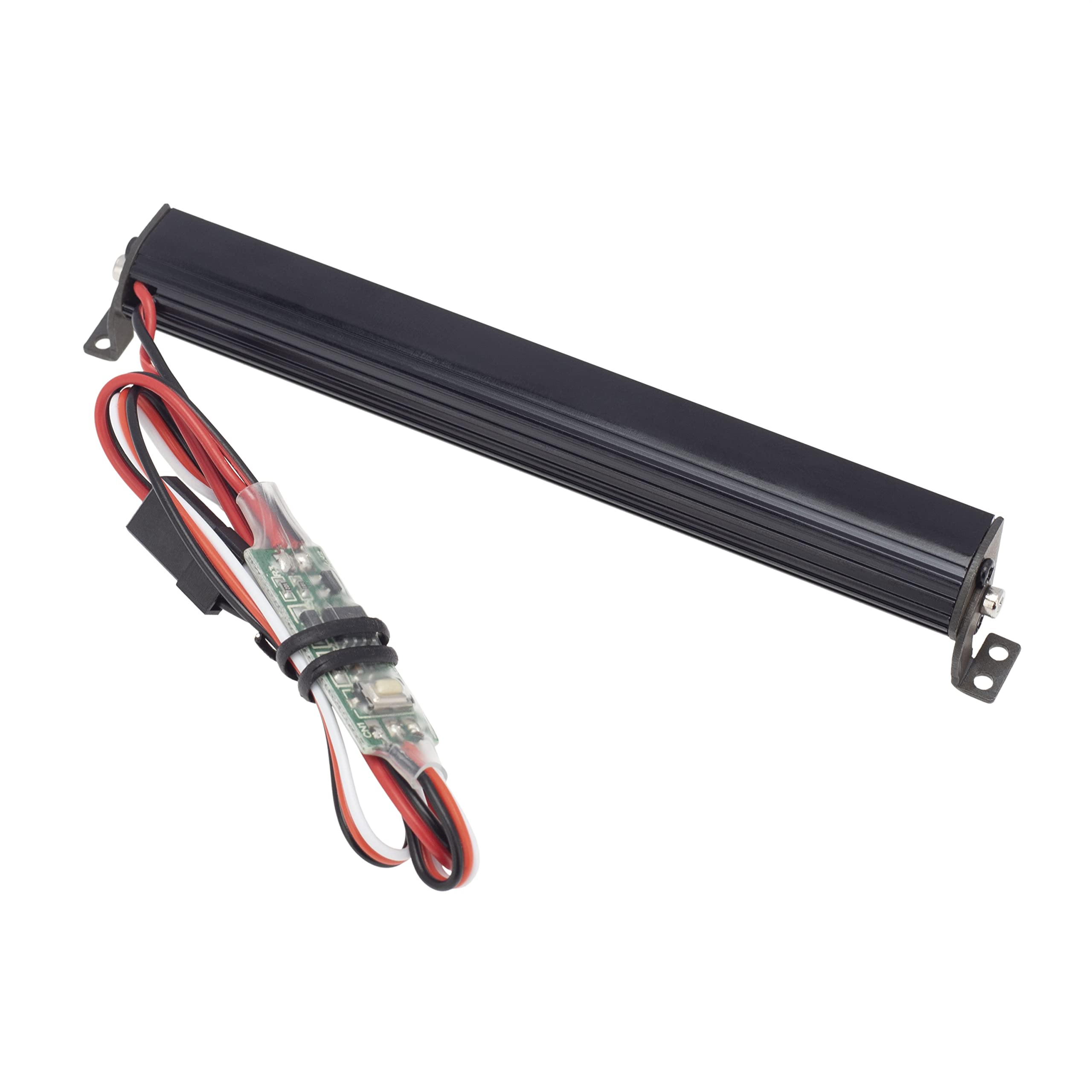

This 32-LED roof light bar is built for 1/10 scale RC crawlers, offering a bright white light with multiple modes for realistic off-road action. Made from metal with a white finish, it mounts easily on the roof of popular models like the Traxxas TRX4, Axial SCX10 (90027, 90046, 90047), D90, and CC01. The double-row design packs 32 LEDs to deliver strong illumination on the trail or in low-light conditions.
Key Specifications at a Glance
- Light Source: 32 LEDs (white)
- Voltage Range: 5 – 8.4 V
- Compatibility: 1/10 RC crawlers (TRX4, SCX10, D90, CC01)
- Material: Metal housing with metal finish
- Control: Manual switch or remote via CH3
- Modes: Constant, breathing, flashing (default constant)
- Shape: Rectangular
What Voltage Does This Light Bar Accept?
The light bar operates on a voltage range of 5 to 8.4 volts. This covers standard 2S LiPo packs (7.4 V nominal) and many NiMH batteries used in 1/10 RC cars. Always check your receiver output voltage to ensure it falls within this range.
How Do You Control the Lighting Modes?

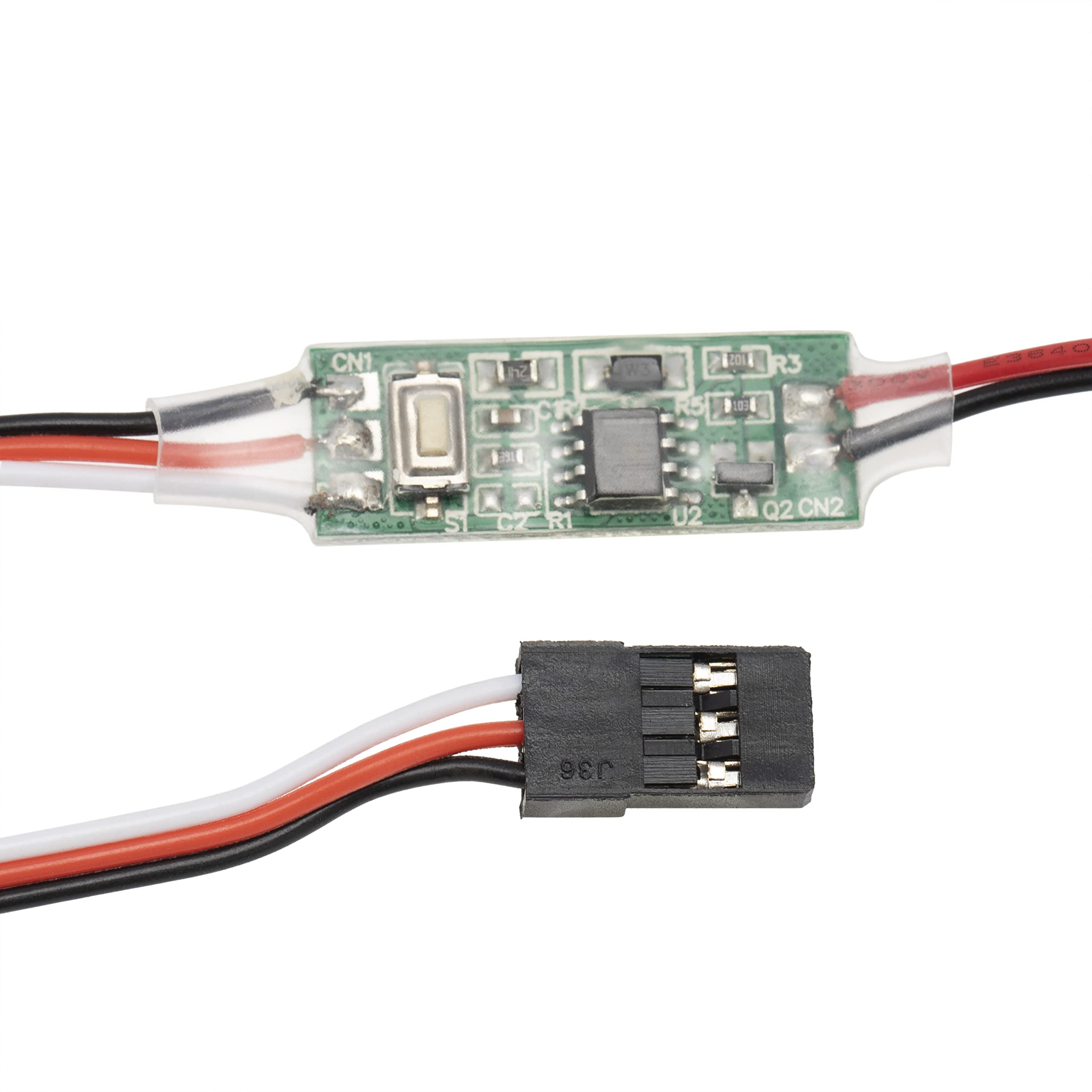

You can switch between the three modes – constant, breathing, and flashing – using your remote control’s third channel (CH3). If your receiver lacks a CH3, a manual switch is also included for direct control. The default mode is constant lighting, so the bar comes on steady out of the box.
Which RC Models Fit This Light Bar?
This light bar is designed for 1/10 scale RC crawlers. Compatible models include Traxxas TRX4, Axial SCX10 (including 90027, SCX10 II 90046, 90047), D90, and CC01. The rectangular shape and metal construction suit roof mounting on these trucks, though you may need to drill small holes or use adhesive depending on your model’s body. The metal housing provides a sturdy mount that holds up to bumps and vibrations on the trail. The bright white LEDs improve visibility in dark conditions, which is especially useful when crawling at dusk or in wooded areas.
Technical Details
| Color | White |
| Shape | Rectangular |
| Material | Metal |
| Finish Type | Metal |
| Number of LEDs | 32 |
| Voltage | 5 – 8.4 V |
| Modes | Constant, Breathing, Flashing |
| Control | Manual / CH3 Remote |
| Package Contents | 1 x LED Light Bar |
Frequently Asked Questions
Is the light bar waterproof?
The supplied information does not specify water resistance. For RC use, many light bars are splash-proof, but we recommend avoiding full submersion unless stated otherwise by the manufacturer.
Does it come with mounting hardware?
The package includes only the light bar itself. You may need to supply your own screws, double-sided tape, or zip ties to secure it to your RC body.
Can I use it without a remote?
Yes, the light bar supports manual control via a switch, so you can turn it on and off without a remote. However, mode switching requires a CH3-capable remote.
