10 Pairs Amass XT150 6mm Bullet Connector Set – 100A Continuous, 150A Peak for RC Models

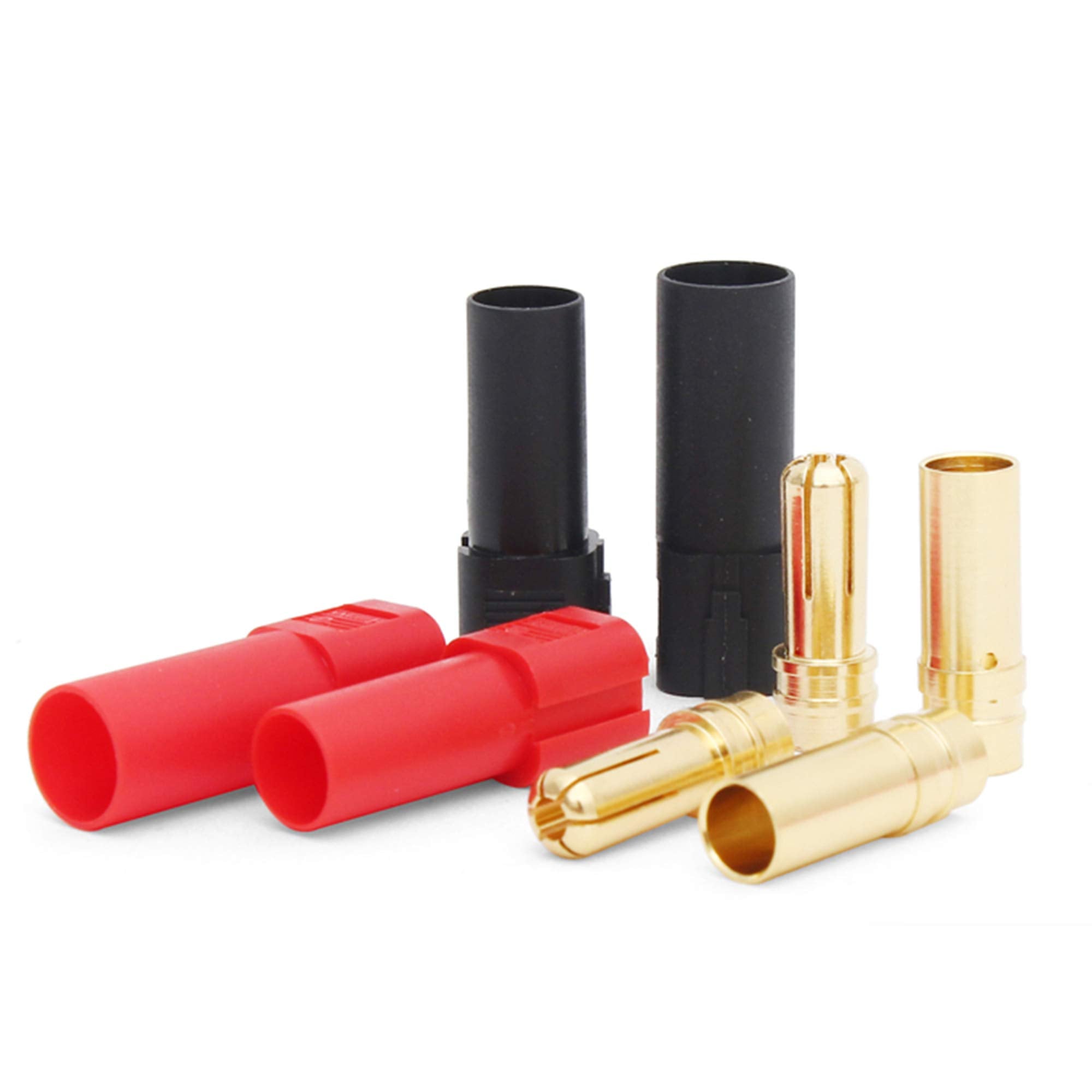

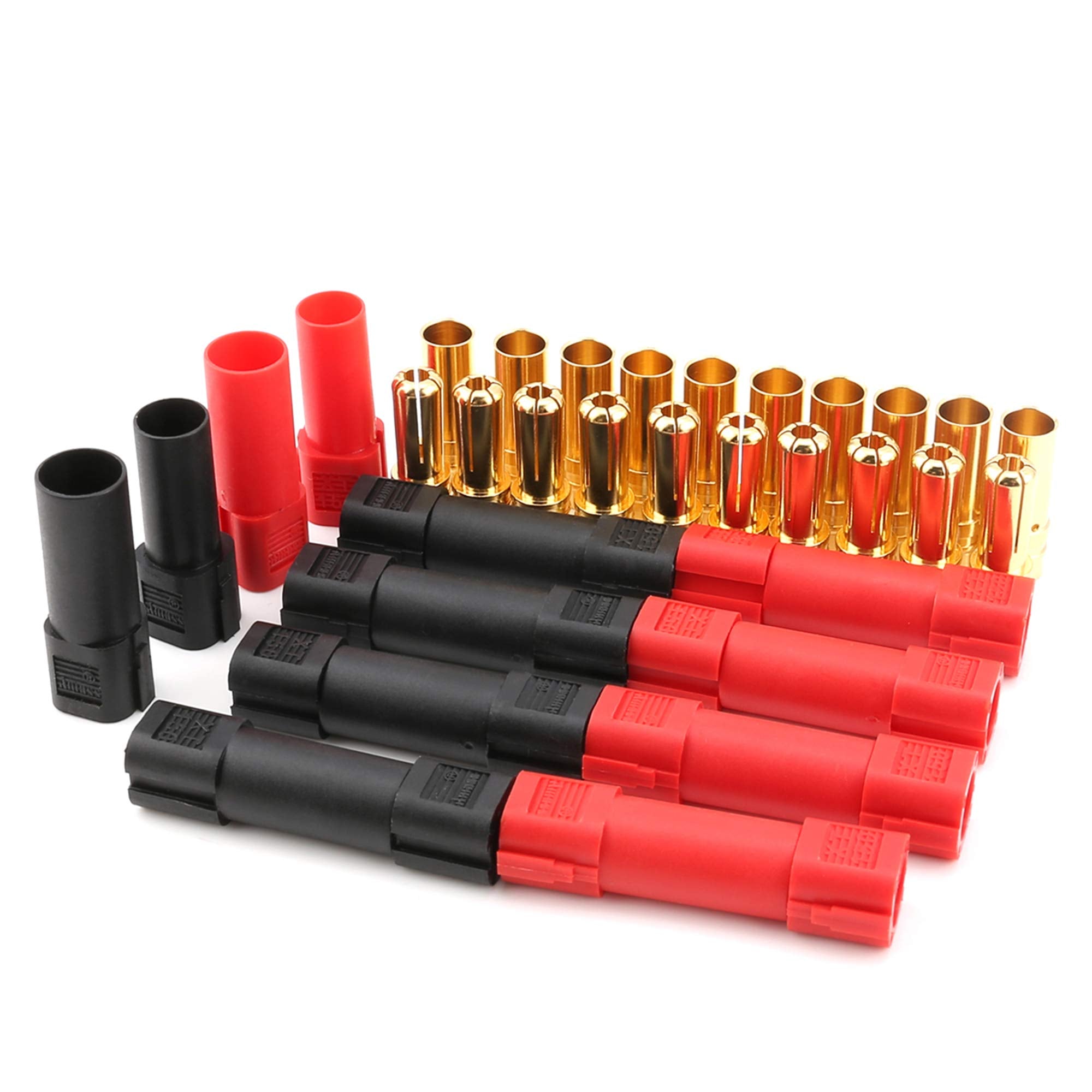

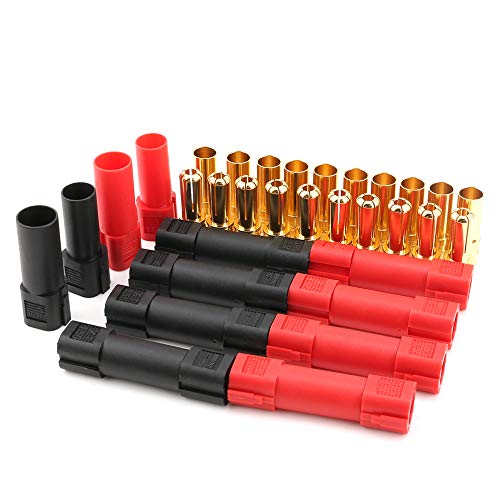

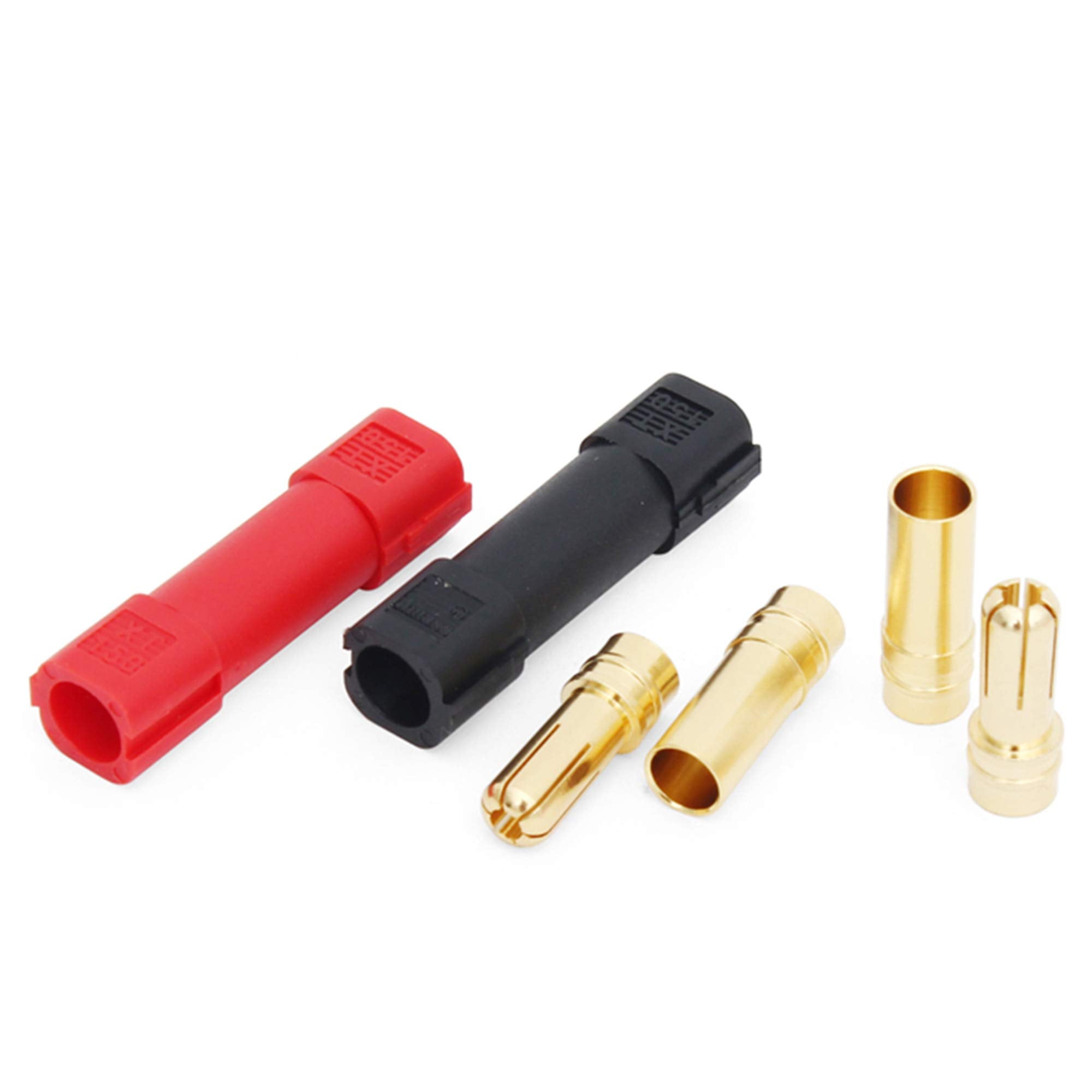

This set includes 10 pairs of Amass XT150 connectors with 6mm gold-plated bullet plugs, rated for 100A continuous and 150A peak current. Designed for large-scale RC models, these connectors handle high current demands while maintaining low resistance. The set includes 10 male and 10 female plugs, plus 10 pairs of 6mm banana connectors for flexible wiring.

Technical specs at a glance

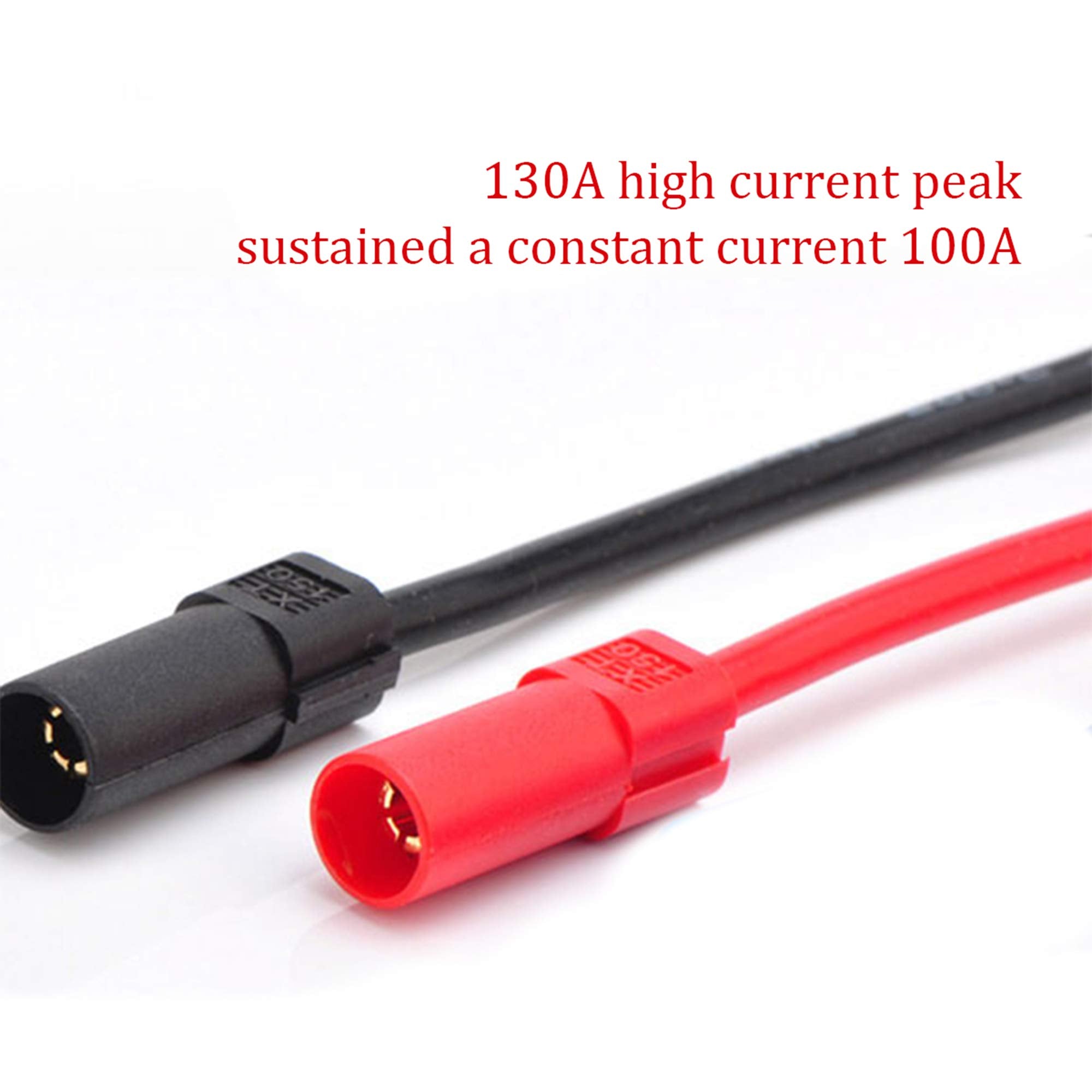

• Current rating: 100A continuous, 150A peak
• Contact: 6mm gold-plated banana plugs
• Wire capacity: 8–10 AWG silicone wire (groove slot at tail)
• Shell material: Flame-retardant nylon, bayonet-style locking
• Color options: Available in two or three colors for protective sleeve
• Weight: 3.84 oz (109 g) per set
• Package dimensions: 5.67 x 3.03 x 0.71 inches

What makes these connectors different?

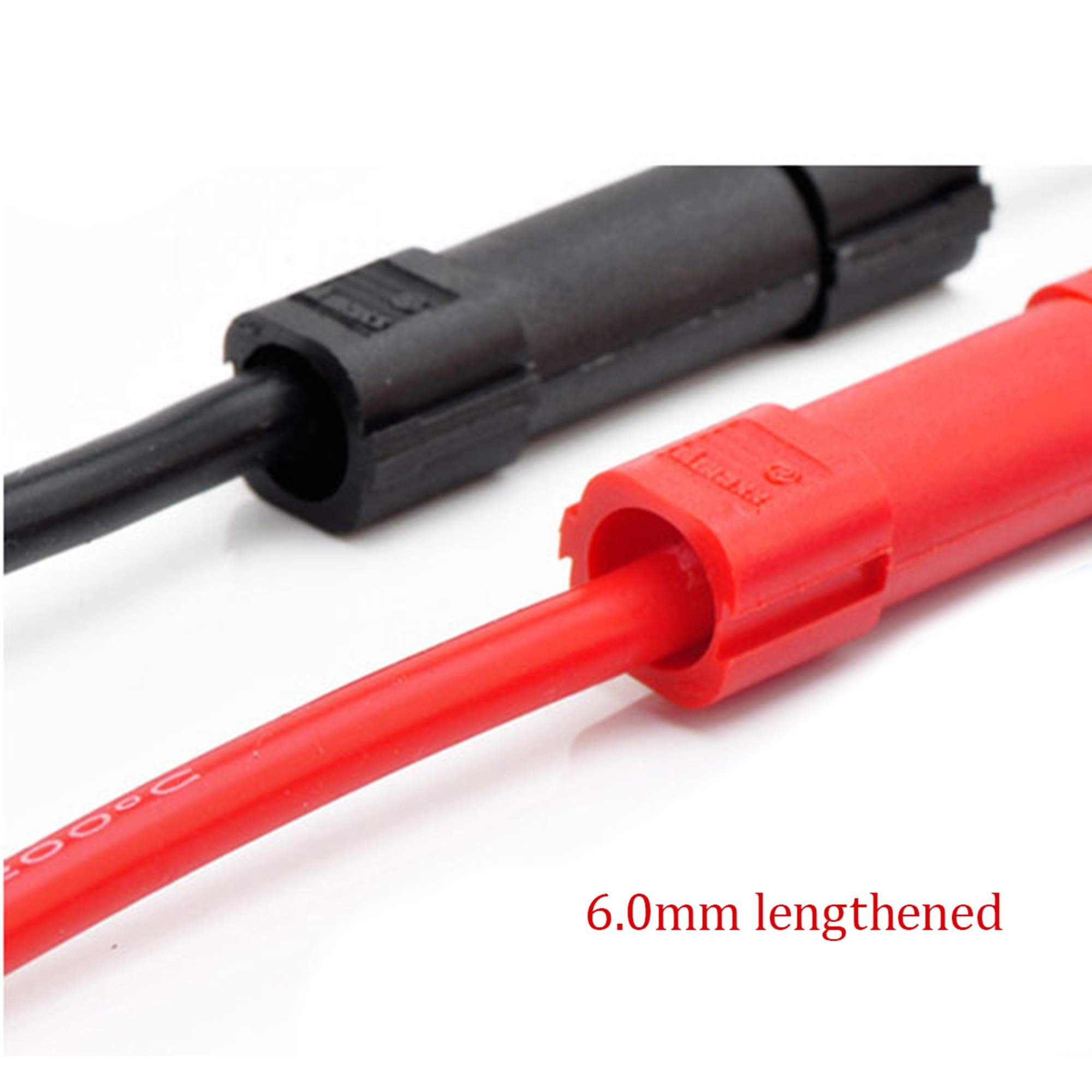

The trapezoidal merging and split design lets you combine plugs in any configuration – male-to-male, male-to-female, or female-to-female – without needing a separate adapter. The extended 6mm banana plugs are reamed for tight contact while still being easy to swap. The non-slip housing tail also includes a groove that can hold 8–10 AWG silicone wire, making soldering and strain relief simpler.

Common questions about the XT150 connector set

Can these connectors handle 150A?

The continuous rating is 100A, with a peak of 150A. They are suitable for large-scale models that demand high current, such as large drones, RC cars, or boats. For sustained 150A use, ensure proper cooling and wire gauge.

What wire fits in the tail groove?

The groove at the tail accepts 8 AWG to 10 AWG silicone wire. This makes soldering easier and reduces stress on the connection.

Are the male and female plugs sold as pairs?

Yes, the set includes 10 male and 10 female XT150 connectors along with 10 pairs of 6mm banana connectors. You get enough for 10 complete connections.

Can I mix these with standard XT60 connectors?

These XT150 connectors use a different shell design and larger 6mm contacts. They are not directly compatible with XT60 connectors without an adapter.
