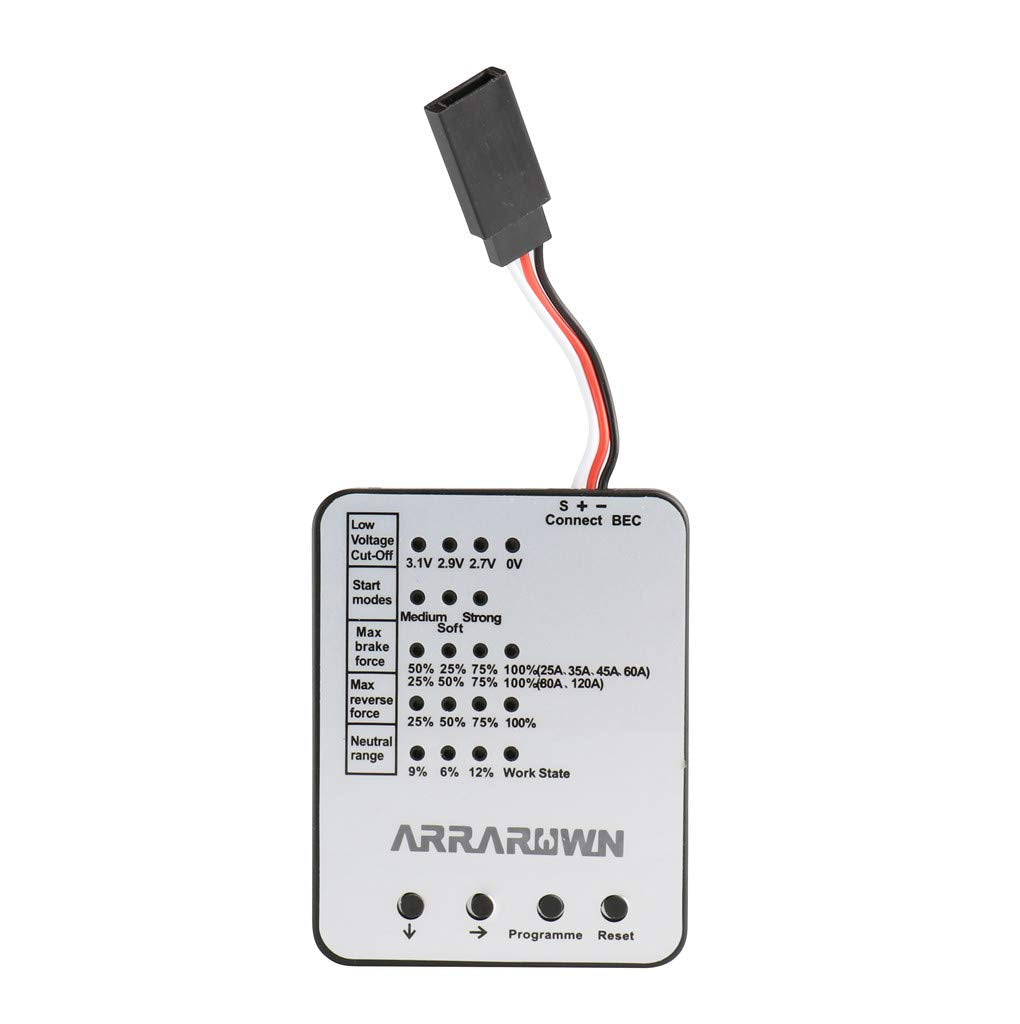

This Surpass Hobby programming card is a dedicated LED program box for programming brushless ESCs from the same manufacturer. It is compatible with Surpass Hobby ESCs rated 25A, 35A, 45A, 60A, 80A, 120A, and 150A, and works with RC cars in scales from 1/18 to 1/8. The card lets you adjust braking force, reversing force, low voltage detection, start mode, and center point width.
Which Surpass Hobby ESCs Work with This Program Card?

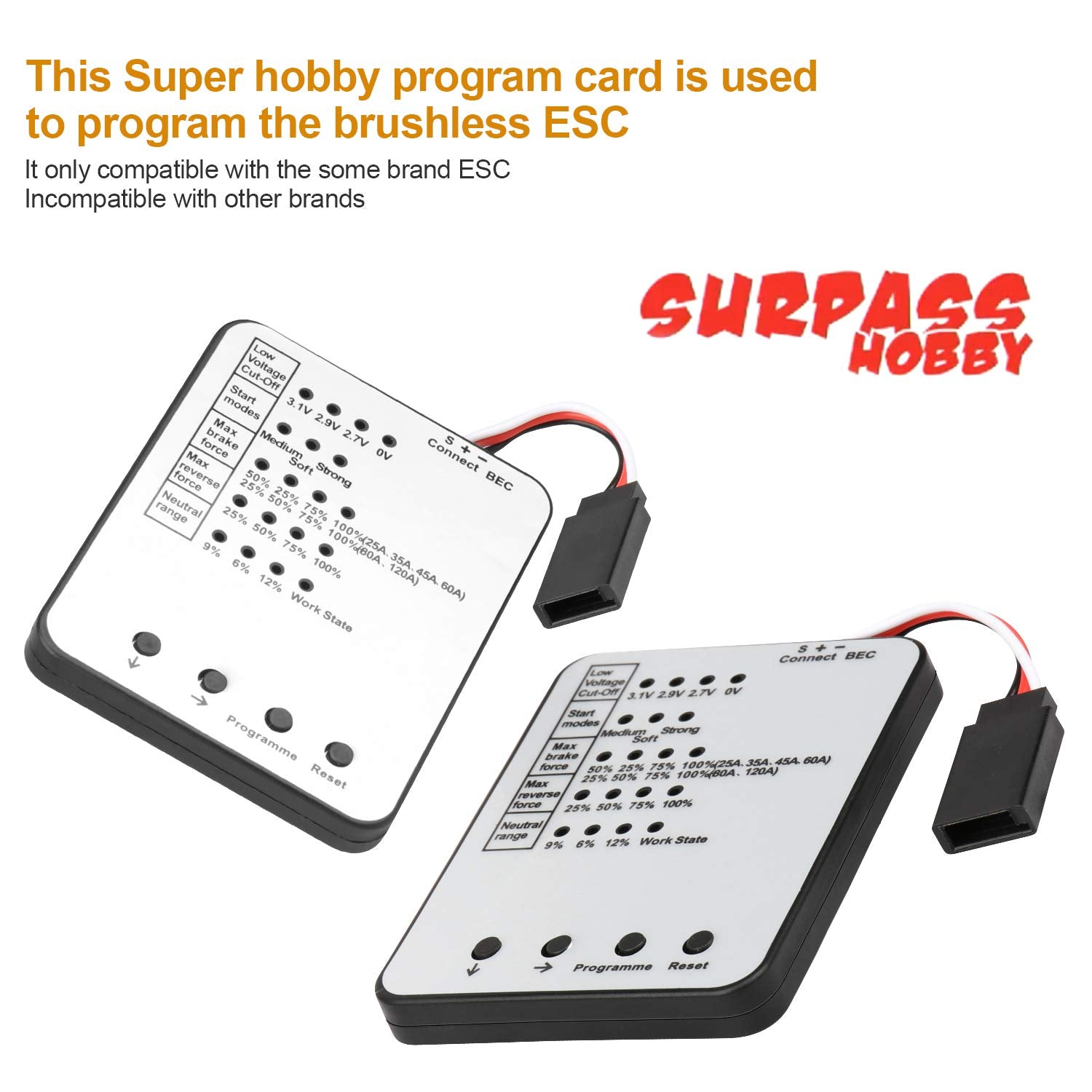

This program card is designed only for Surpass Hobby brushless ESCs that are produced by the same manufacturer as the card. It supports the following ESC models: 25A, 35A, 45A, 60A, 80A, 120A, and 150A. It is not compatible with ESCs from other brands.
What RC Car Scales Are Supported?

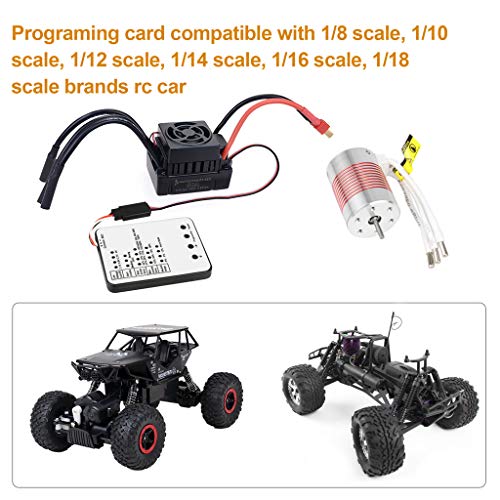

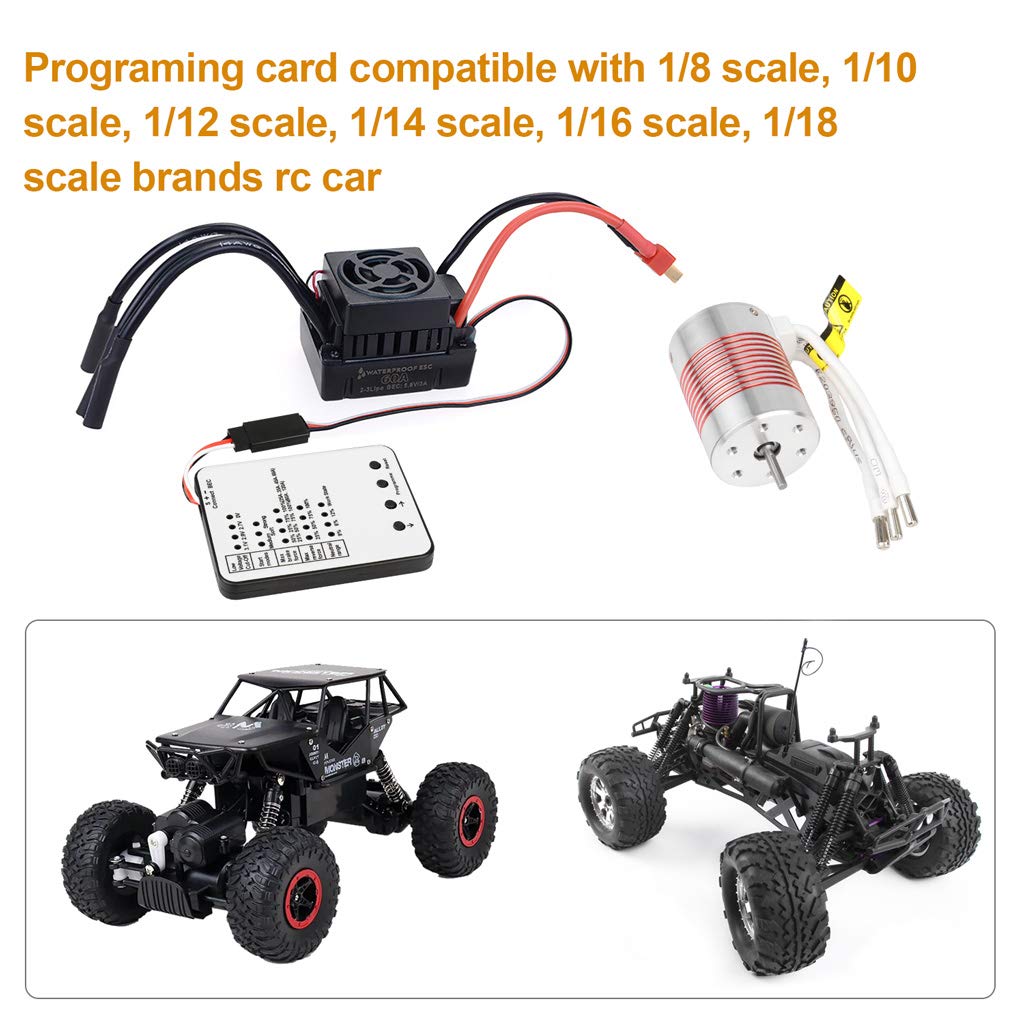

The card works with RC cars in the following scales: 1/8, 1/10, 1/12, 1/14, 1/16, and 1/18. It is suitable for a wide range of hobby-grade vehicles.

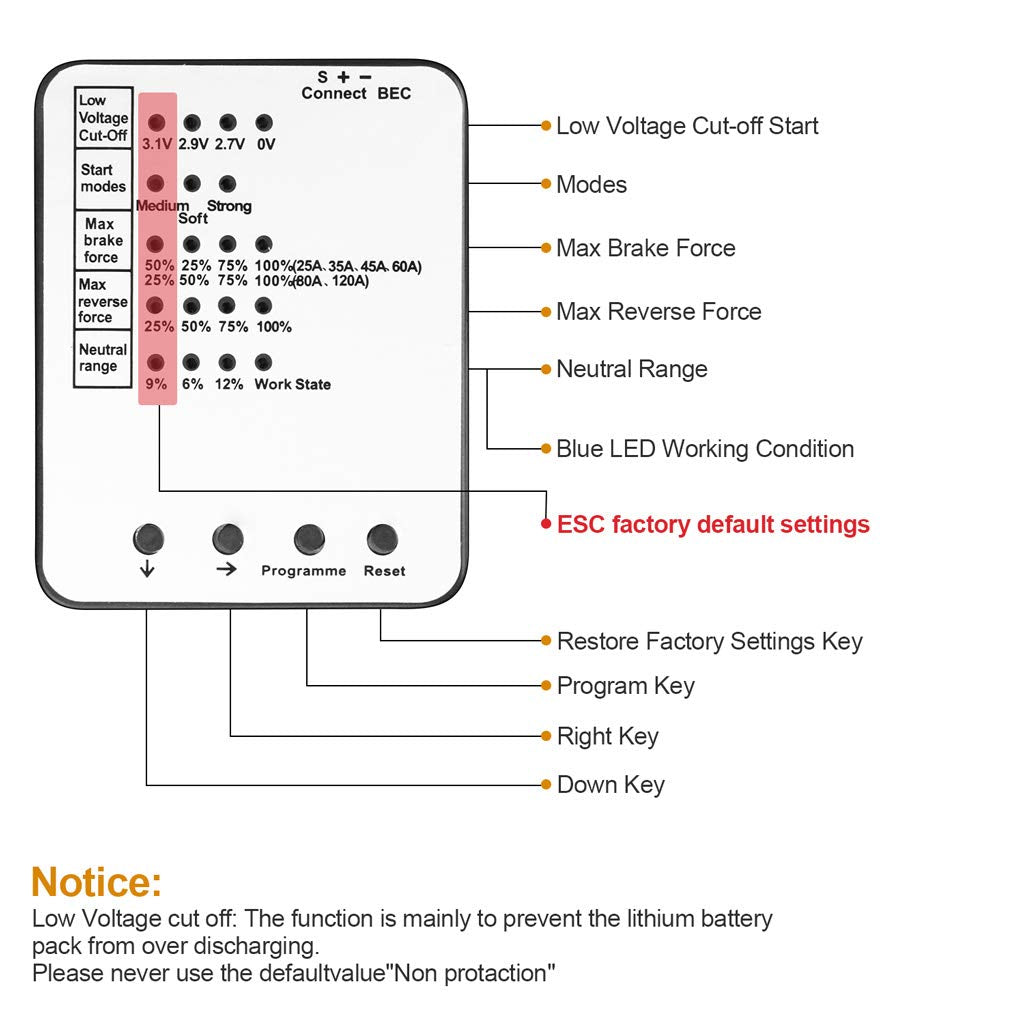

Adjustable Parameters
| Parameter | Options (Default in bold) |
| Low Voltage Detection | 3.1V, 2.9V, 2.7V, No detection (default: 3.1V) |
| Start Mode | Normal, Soft, Strengthened (default: Normal) |
| Max Braking Force (25A/45A/60A) | 50%, 25%, 75%, 100% (default: 50%) |
| Max Braking Force (80A/120A) | 25%, 50%, 75%, 100% (default: 25%) |
| Max Reversing Force | 25%, 50%, 75%, 100% (default: 25%) |
| Center Point Width | 9%, 6%, 12% (default: 9%) |
Specifications
| Dimensions | 80 x 60 x 6 mm (2.4 x 1.9 x 0.2 in) |
| Weight | 26 g (0.92 oz) |
| Compatible ESCs | 25A, 35A, 45A, 60A, 80A, 120A, 150A Surpass Hobby brushless ESCs |
| Compatible Scales | 1/8, 1/10, 1/12, 1/14, 1/16, 1/18 |
| Connection | Plug and play via BEC wire (match color orientation) |

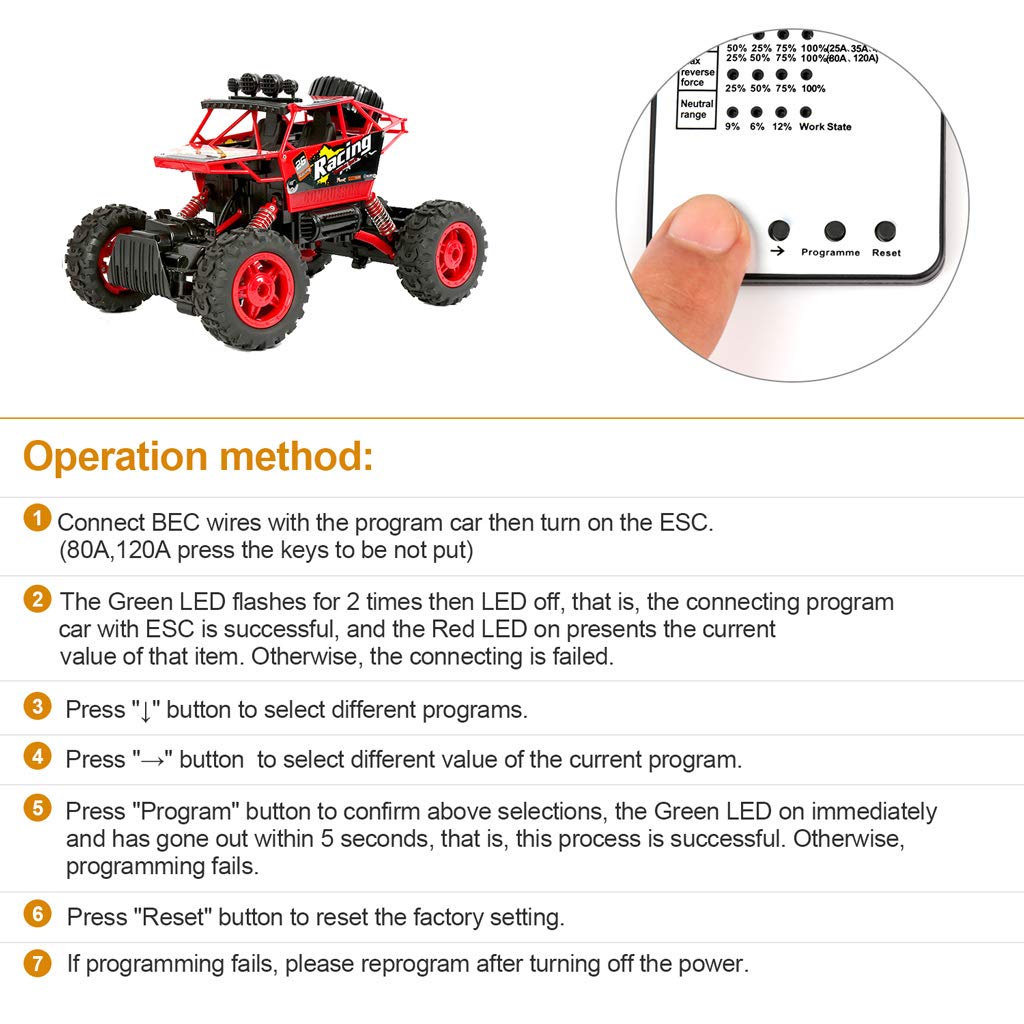

How to Use the Program Card
Using the card is straightforward. Connect the BEC wires from the ESC to the program card, matching the colors. Turn on the ESC. For 80A and 120A ESCs, press any key before powering on to enable programming. The green LED will flash twice and then turn off, indicating a successful connection. The white LED shows the current value. Use the ↓ key to select a parameter, → to change its value, and Program to confirm. Press Reset to restore factory defaults (note: power off and on again after resetting).
Frequently Asked Questions
Is this program card compatible with ESCs from other brands?
No, it is designed only for Surpass Hobby ESCs manufactured by the same parent company as the card. It will not work with other brands.
How do I connect the program card to my ESC?
Connect the BEC wires from the ESC to the program card, matching the color orientation. Then turn on the ESC. For 80A and 120A models, press any key before powering on to enter programming mode.
Can I restore factory settings?
Yes, press the Reset key. After resetting, turn off the ESC and then turn it back on. The card will return to default values.
