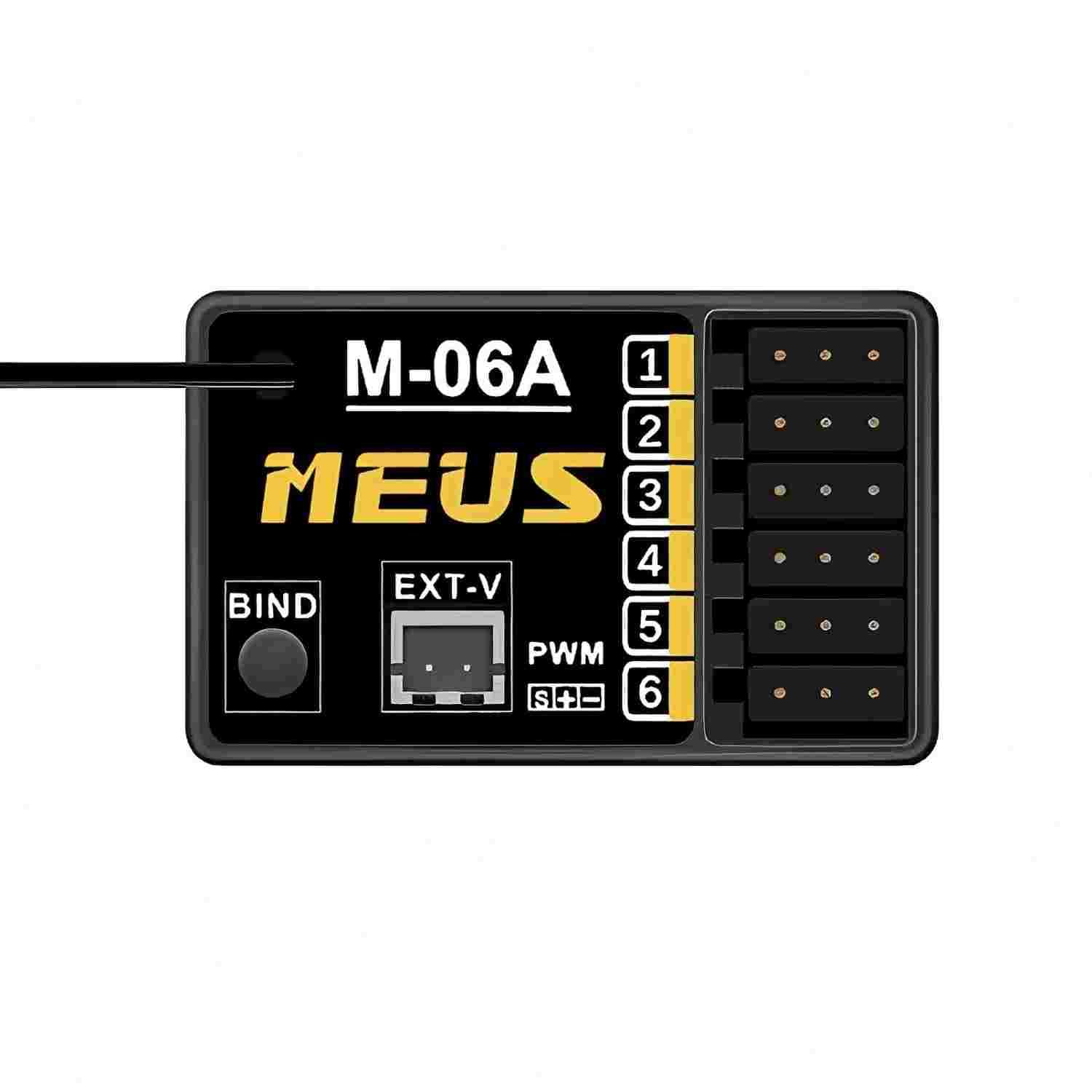

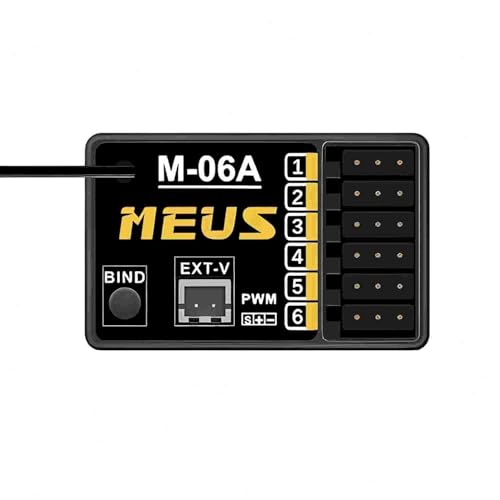

MEUS RACING M-06A 2.4GHz 6CH RC Receiver – 984ft Range, Telemetry, Water Splash Proof

The MEUS RACING M-06A is a 2.4GHz 6-channel RC receiver designed for use with MEUS Racing transmitters like the ME-10B. It offers a control range of up to 984 feet on the ground and 2625 feet in the air, using pseudo-random FHSS and GFSK technology for strong anti-interference performance. With real-time telemetry for battery voltage and RSSI, plus a 4096-step resolution, it delivers precise and responsive control for RC cars, boats, tanks, and more.

What makes the M-06A different from other receivers?

This receiver stands out with its combination of long-range telemetry and robust protection features. It provides live battery voltage and signal strength data, helping you avoid over-discharge and signal loss. The high resolution ratio of 4096 ensures smooth and accurate servo movement, which is especially useful for rock crawlers and competition vehicles. Additionally, the water splash proof design and anti-polarity protection add durability and ease of use—if you accidentally reverse the power wires, the receiver won't be damaged.

Range and telemetry details

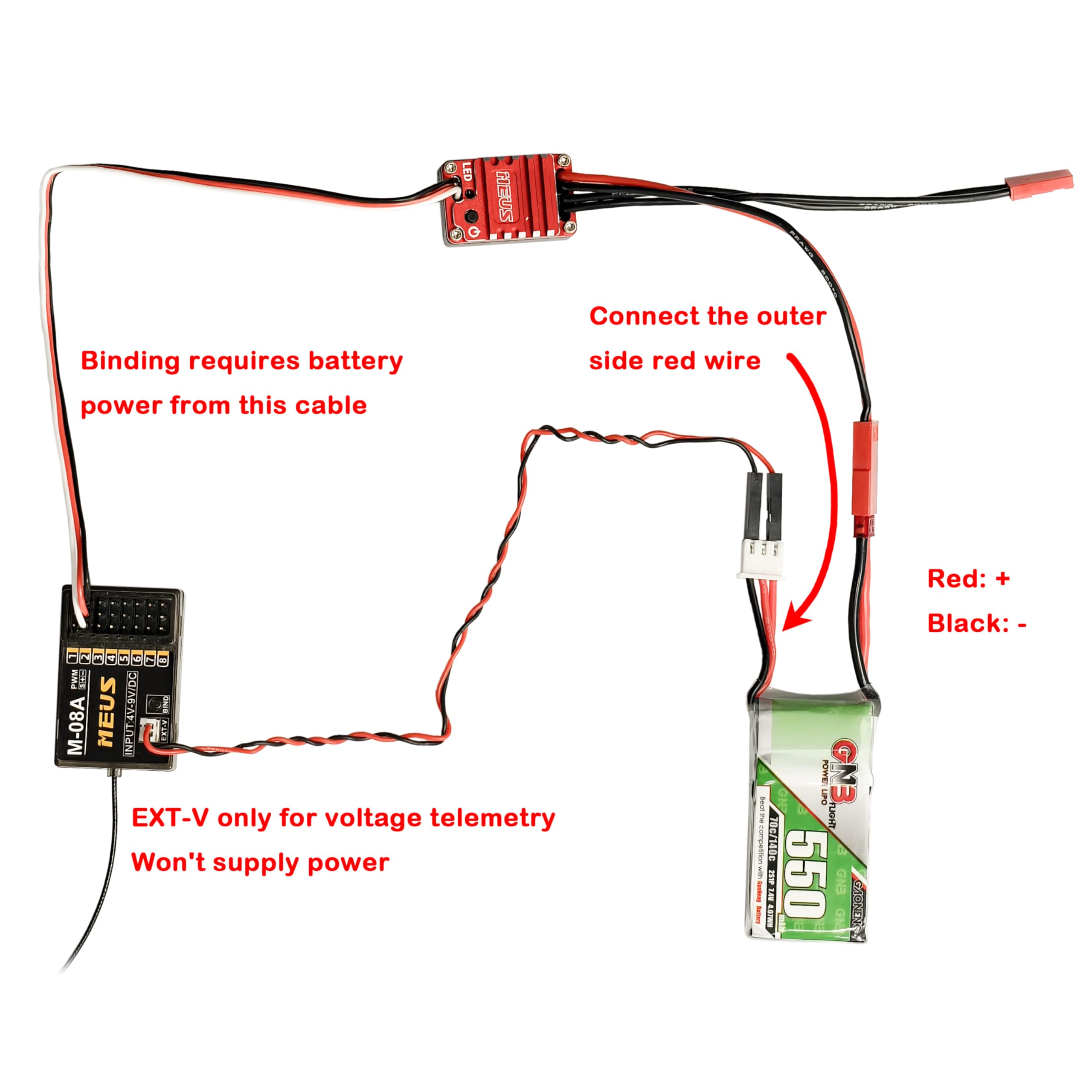

The M-06A can reach up to 300 meters (984 feet) on the ground and 800 meters (2625 feet) in the air. Actual range may vary based on environment. Telemetry information includes battery voltage (via the EXT-V port) and RSSI signal strength, viewable on compatible MEUS transmitters. Note the EXT-V port polarity: negative on the left, positive on the right.

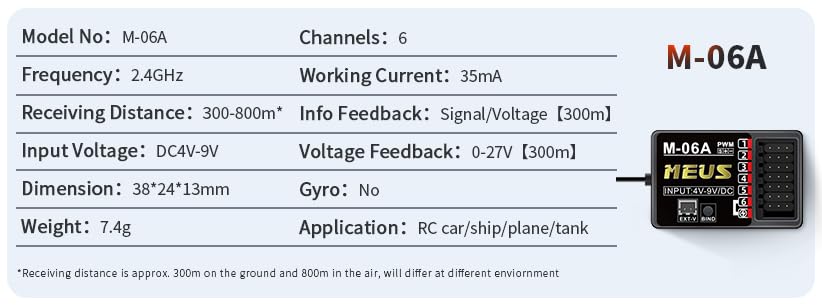

Specifications at a glance

Is this receiver compatible with any RC transmitter?

No, the M-06A is designed exclusively for MEUS Racing transmitters, such as the ME-10B. It will not work with other brands.

How do you bind the M-06A receiver?

Binding is simple: power up the transmitter and receiver, then press the bind button on the receiver for one second. The receiver will sync with the transmitter automatically.

What types of RC vehicles can it control?

This 6-channel receiver works with RC cars (rock crawler, truck, buggy, drifting), boats, tanks, and other models. It supports applications needing up to six channels.

Common questions about the M-06A

Does it support telemetry?

Yes, it provides real-time battery voltage and RSSI signal strength data through the EXT-V port and compatible transmitter.

What happens if I connect the power backwards?

The receiver has anti-polarity protection, so reversing the power wires will not damage it.

Can two transmitters control one vehicle?

Yes, the M-06A allows a primary and secondary transmitter to work together, useful for training or parent-child activities.

What is the range in the air?

Up to 2625 feet (800 meters), depending on environmental conditions.
