MEUS RACING M-04B 2.4GHz 4-Channel RC Receiver with Telemetry and Anti-Interference
MEUS RACING M-04B 2.4GHz 4-Channel RC Receiver with Telemetry and Anti-Interference

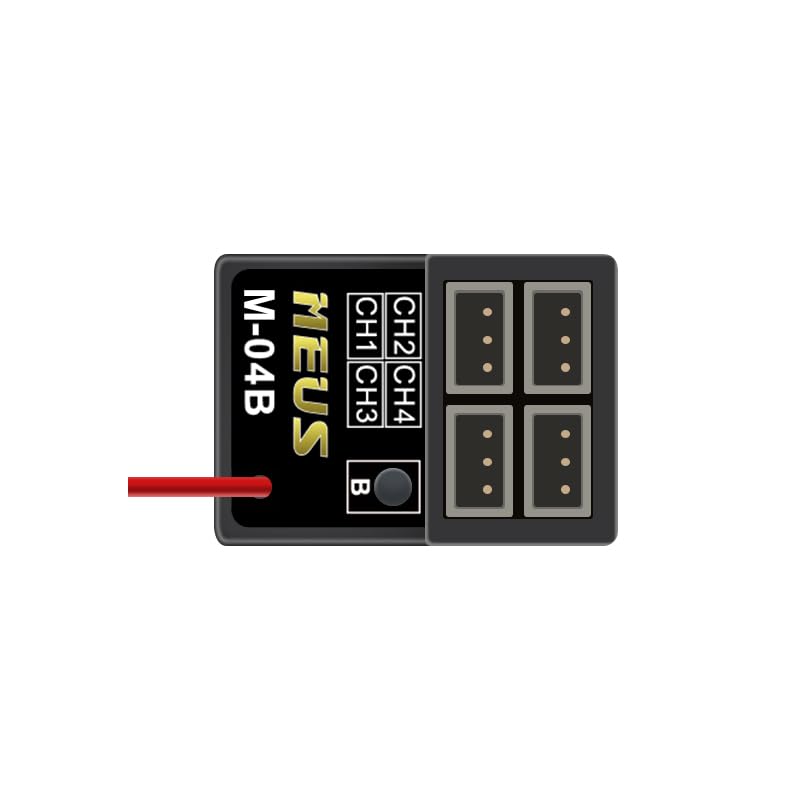

The MEUS RACING M-04B is a 2.4GHz 4-channel RC receiver designed for use with MEUS transmitters like the ME-10B. It uses pseudo random FHSS and GFSK technology for strong anti-interference, achieving control ranges of up to 984 feet on the ground and 2,625 feet in the air. Real-time telemetry provides battery voltage and RSSI data to help avoid over-discharge. With a 4096 resolution, it delivers responsive control for RC rock crawlers, trucks, buggies, drift cars, boats, and more.
What makes this receiver suitable for RC cars and boats?
The M-04B offers a 4096-step high resolution ratio for precise, fast signal output across all four channels. It's water splash proof and includes anti-polarity protection, so accidentally reversing the power wires won't damage the unit. The receiver also supports a unique light control feature: channel 4 is dedicated to LED lights, and you can toggle them using channel 5 on the compatible MEUS transmitter.

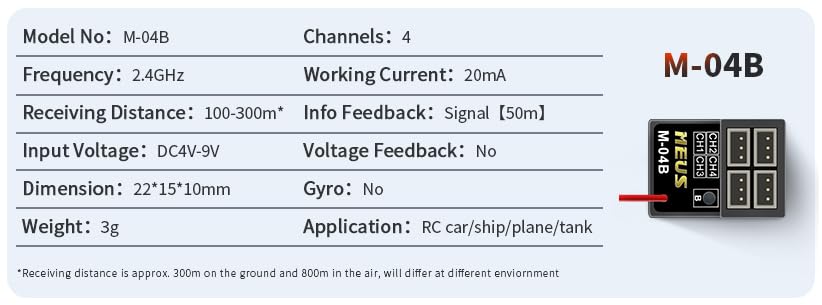

Technical specifications
| Channels | 4 (CH1-3 for servos, CH4 for lights) |
| Modulation | FHSS + GFSK |
| Resolution | 4096 steps |
| Range (ground) | Up to 984 ft (300 m) |
| Range (air) | Up to 2,625 ft (800 m) |
| Dimensions | 1 x 1 x 1 inches |
| Weight | 3.34 ounces |
| Water resistance | Splash proof |
| Compatibility | MEUS RACING transmitters only |
| Recommended age | 14 years and up |
Compatibility and channel setup

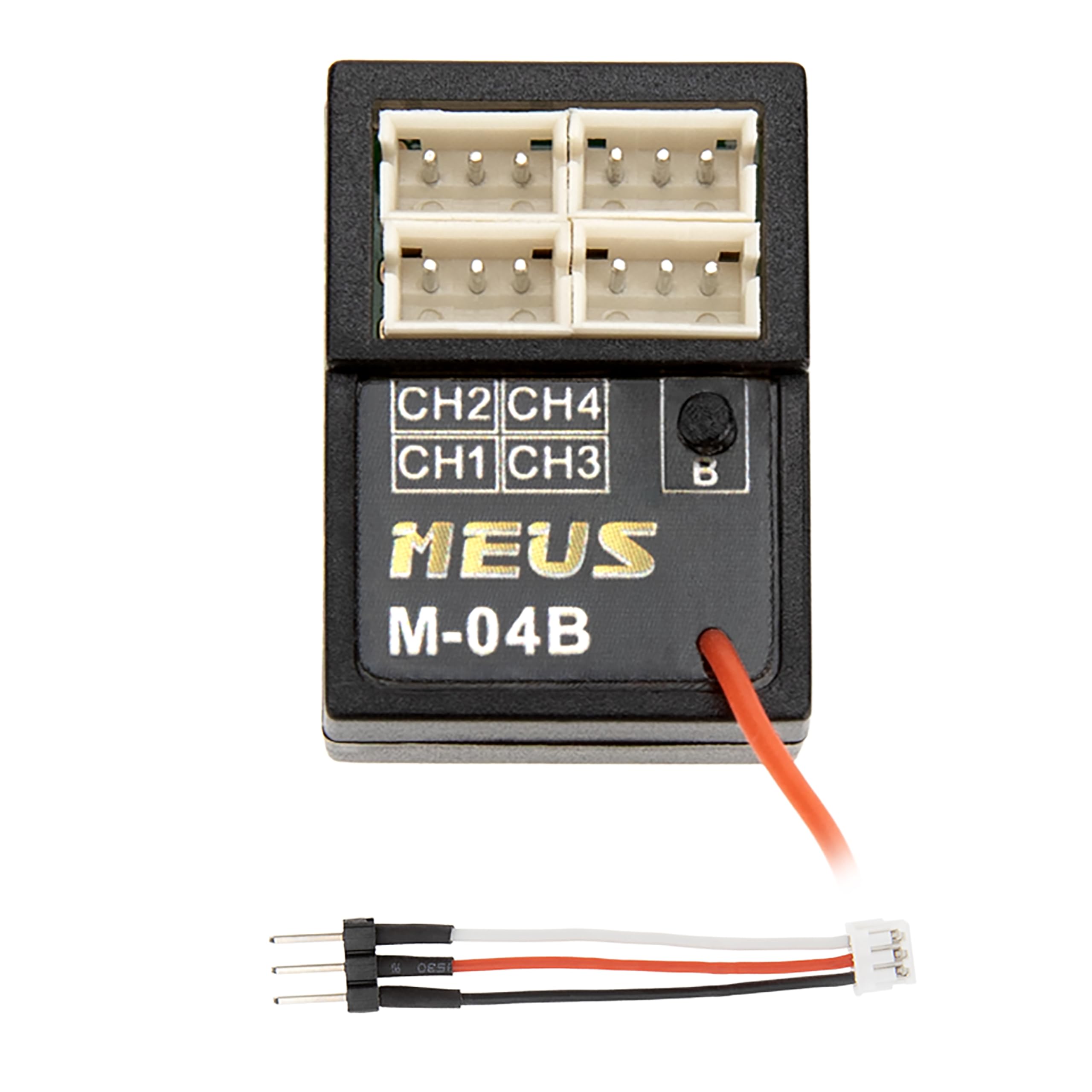

This receiver works exclusively with MEUS RACING transmitters, such as the ME-10B. Channels 1, 2, and 3 can each connect to a standard servo. Channel 4 is pre-configured for LED lights: only connect the positive and negative wires (no signal pin needed). The lights are controlled by channel 5 on the transmitter. A bind button on the receiver makes pairing simple—just press it for one second after powering up both the transmitter and receiver.
Telemetry and protection features
Real-time telemetry data, including battery voltage and RSSI signal strength, is transmitted back to the transmitter. This helps you monitor battery levels to prevent over-discharge damage. The receiver also has built-in anti-polarity protection: inserting the power wires backward will not cause damage, making setup safer.
Frequently asked questions
Will this receiver work with my non-MEUS transmitter? No. It is designed exclusively for MEUS RACING transmitters like the ME-10B.
Can I use all four channels for servos? No. CH4 is for lights only; CH1, CH2, and CH3 are for servos.
How do I bind the receiver? Power the transmitter and receiver, then press the bind button on the receiver for one second.
What happens if I connect the power backwards? The anti-polarity protection prevents damage—just correct the polarity.
