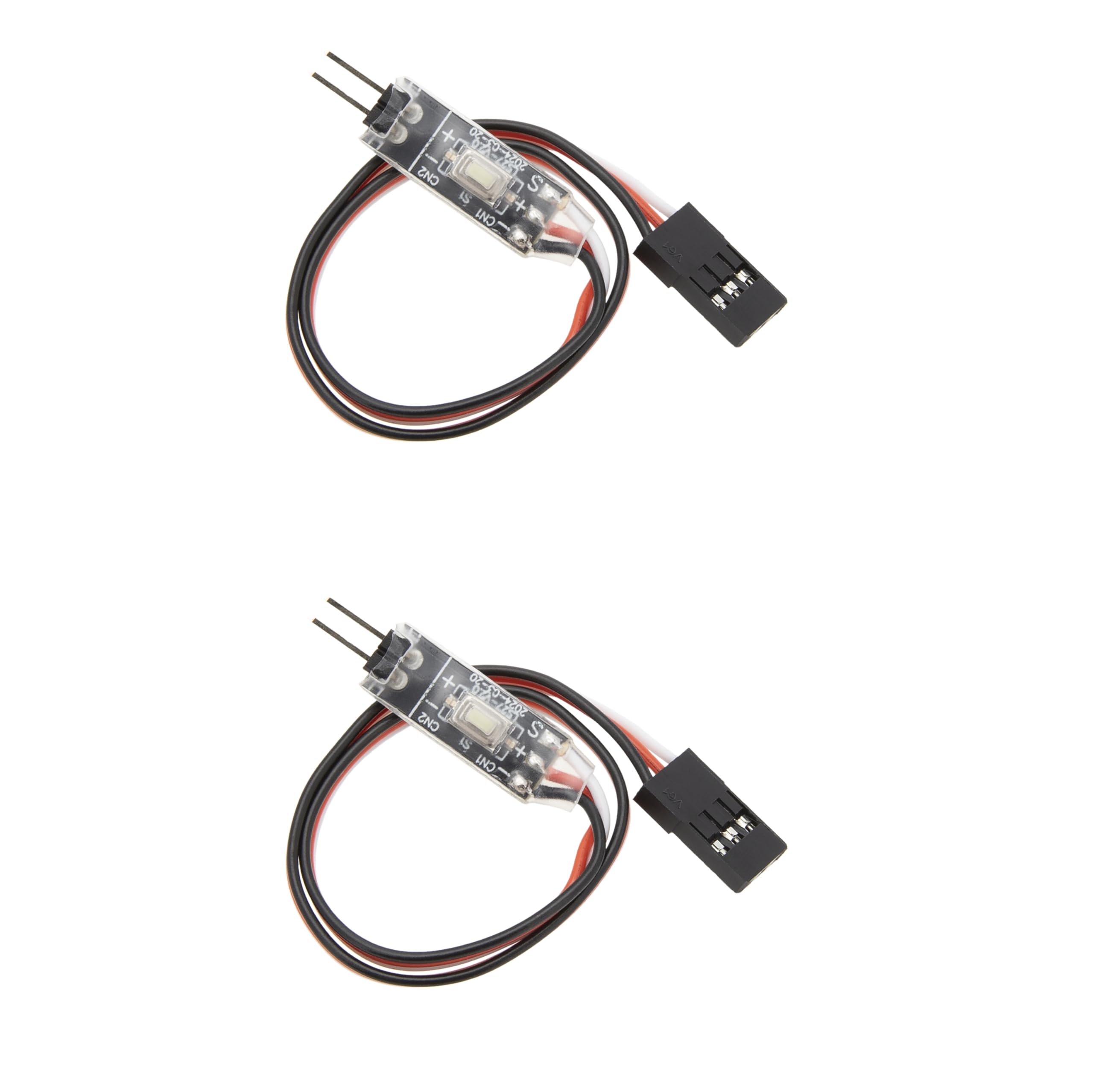

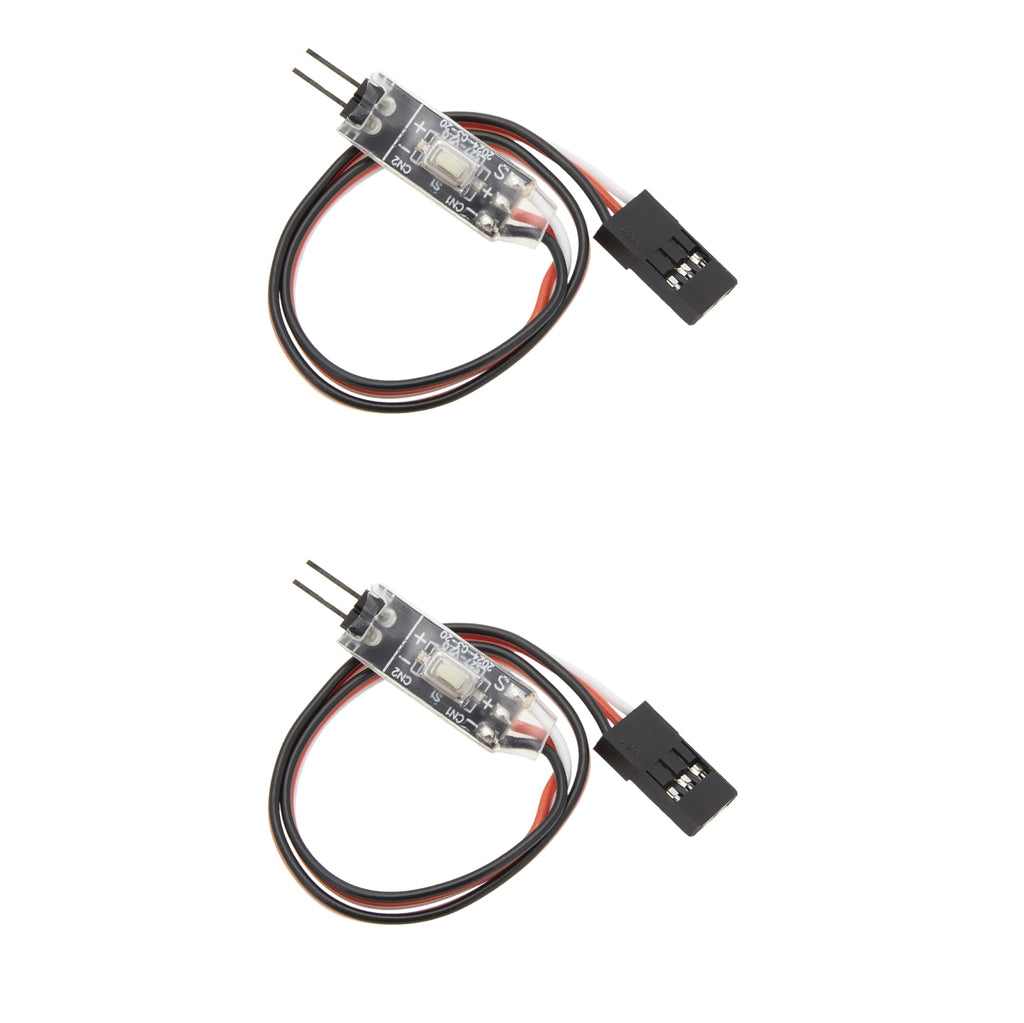

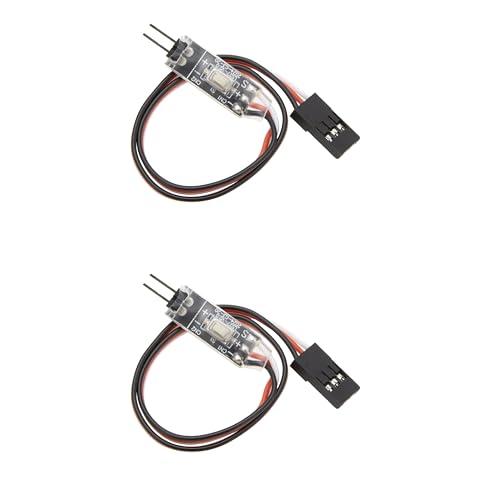

MEUS RACING AUX RC Light Remote Controller Switch – 3 Modes for RC Cars, Boats, Drones (2-Pack)
MEUS RACING AUX RC Light Remote Controller Switch – 3 Modes for RC Cars, Boats, Drones (2-Pack)
The MEUS RACING AUX RC Light Remote Controller Switch lets you control lights on RC vehicles with three distinct modes: constant, breathing, and fast flashing. This 2-pack includes units that plug directly into your receiver’s AUX channel via a standard 2.54mm PIN connector, requiring no soldering or programming. Compatible with RC cars, boats, drones, trucks, planes, helicopters, and quadcopters, each switch outputs the same voltage as the input (DC 6–8.4V) and handles up to 3A load current. Simply toggle the assigned switch on your transmitter to cycle through modes.
What Lighting Modes Are Available?
The controller offers three easily selectable modes:
- Constant light – steady illumination without variation.
- Breathing light – smoothly fades in and out for a pulsing effect.
- Fast flashing – rapid on/off strobe for high visibility.
Specifications
| Brand | MEUS RACING |
| Color | Black |
| Connector | 2P 2.54 PIN plug |
| Input Voltage | DC 6–8.4V |
| Output Voltage | Equal to input voltage |
| Load Current | DC 3A max |
| Compatible Devices | RC Car, Boat, Drone, Truck, Plane, Helicopter, Quadcopter |
| Quantity | 2 units |
How to Install and Use
Installation is straightforward: plug the 2-pin connector into an open AUX channel on your receiver (or any channel you designate). No setup or binding is required. Before use, confirm your transmitter’s channel throw is set to ±100% (1000–2000μs) to ensure proper mode switching. Also verify that your lights can handle the output voltage and current (same as input).
Frequently Asked Questions
Will this work with my 7.4V LiPo battery?
Yes, as long as the voltage is between 6V and 8.4V, which covers most 2S LiPo batteries. The output will match the input, so your lights must be rated for that voltage.
Do I need to solder or program anything?
No. The controller comes ready to use – just plug it in and assign a switch on your transmitter.
Can I control more than one light with each switch?
Each unit handles up to 3A continuous current. You can wire multiple lights in parallel as long as total current doesn’t exceed 3A.
Does this work with all receivers?
It works with any receiver that provides a standard servo-style AUX channel output (1000–2000μs). Verify your receiver’s connector fits the 2.54mm pin spacing.
