INJORA 4LED Rock Lights Kit with Controller for 1/10 RC Crawlers (White LEDs)
INJORA 4LED Rock Lights Kit with Controller for 1/10 RC Crawlers (White LEDs)

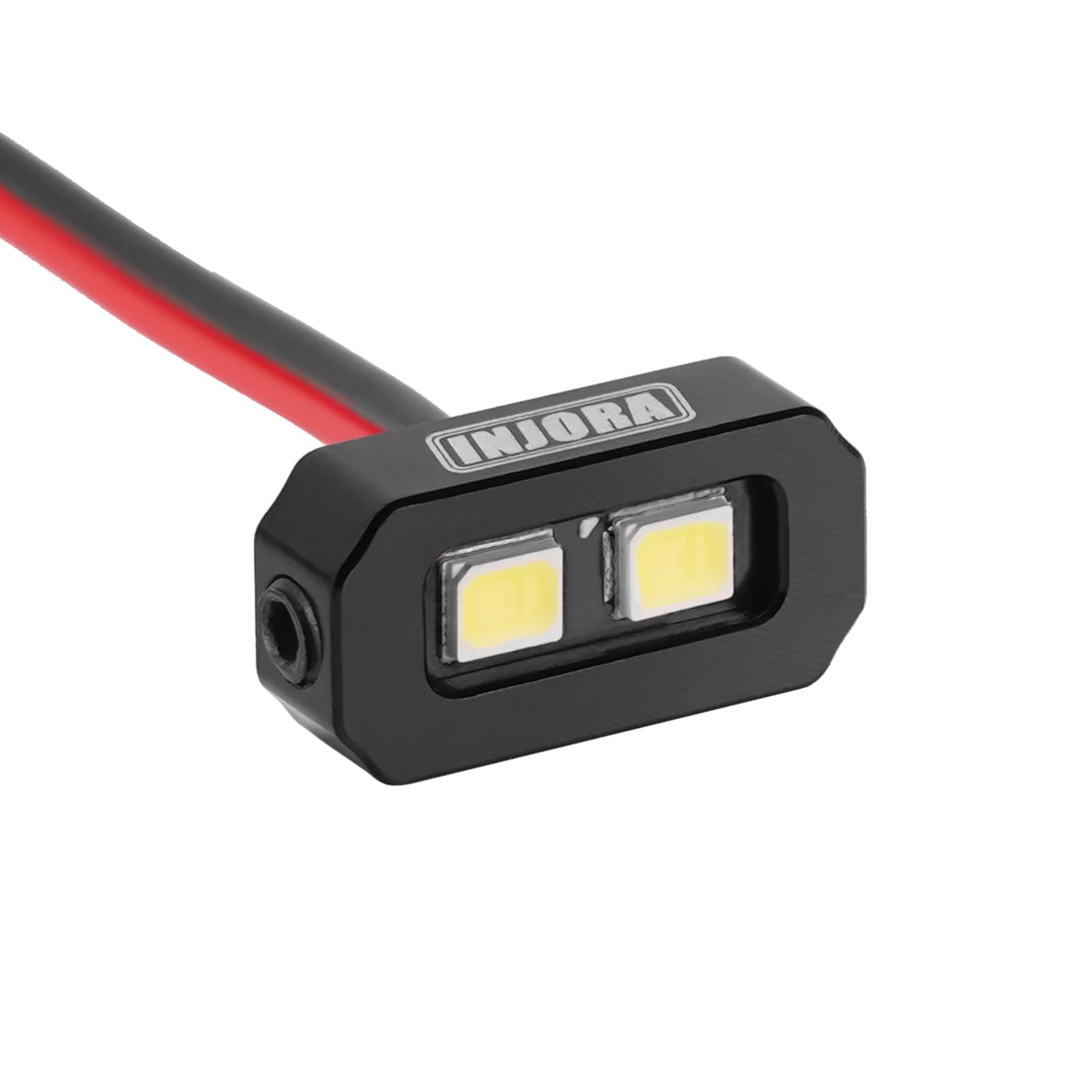

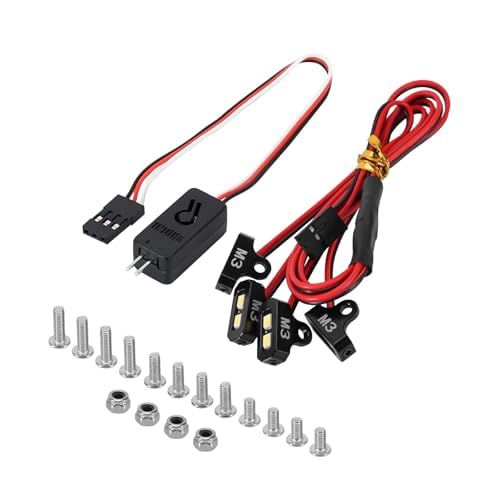

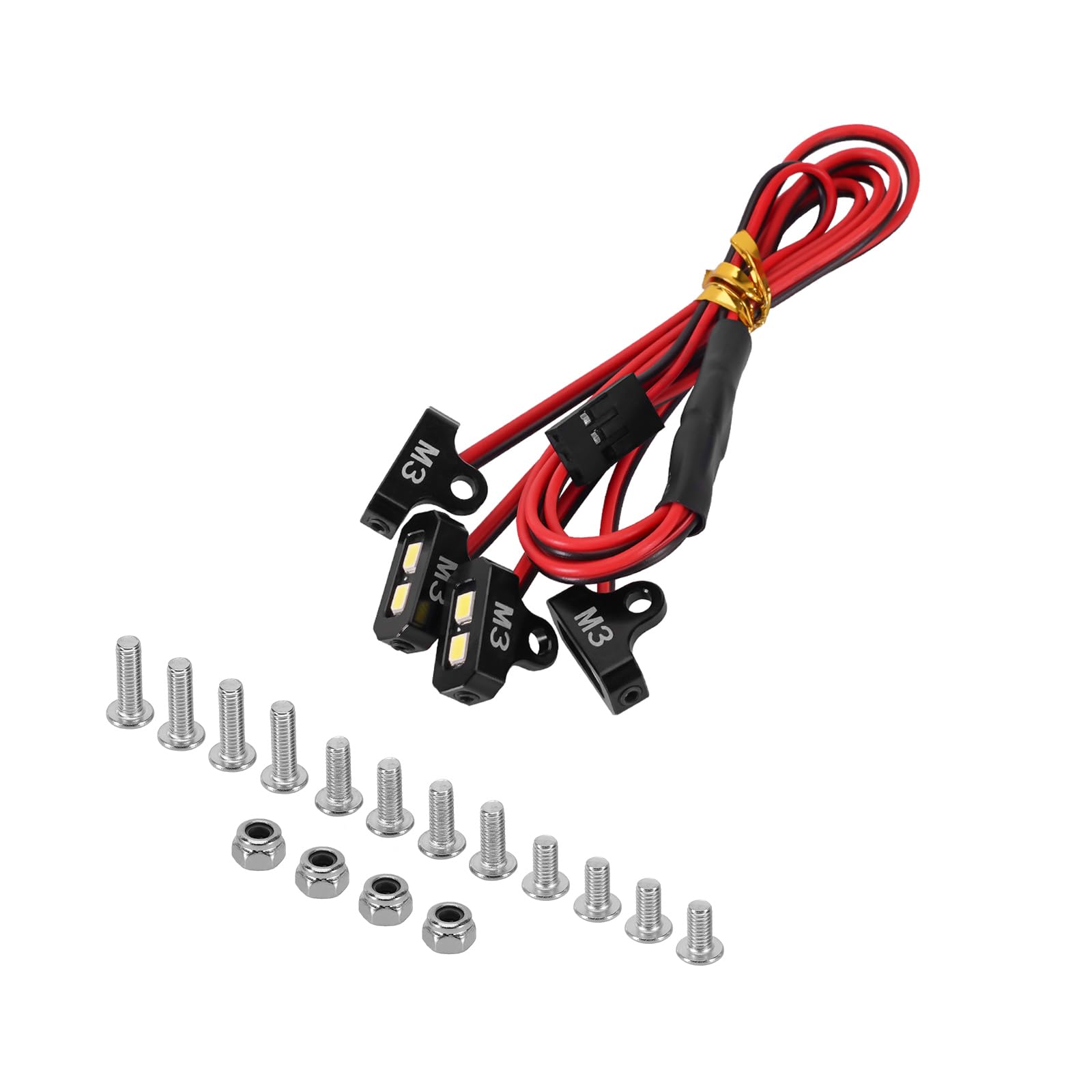

The INJORA 4LED Rock Lights Kit includes four white LEDs and a controller, built for 1/10 scale RC crawlers such as SCX10 and TRX4. The lights mount using CNC machined aluminum brackets with M3 screws, and operate on a 5-7.4V input. The kit comes with locking nuts and cable ties for easy installation, and the wire length is roughly 340mm (13.39 inches).
What lighting modes does the rock lights kit offer?
The controller provides three distinct modes: steady (constant on), breathing (slow pulsing), and strobe (rapid flashing). You can cycle through these modes using the included controller or via the CH3 button on your transmitter. Steady mode is useful for consistent illumination, breathing adds a realistic glow effect, and strobe can serve as a warning or attention-getting signal.
Installation and Mounting Details

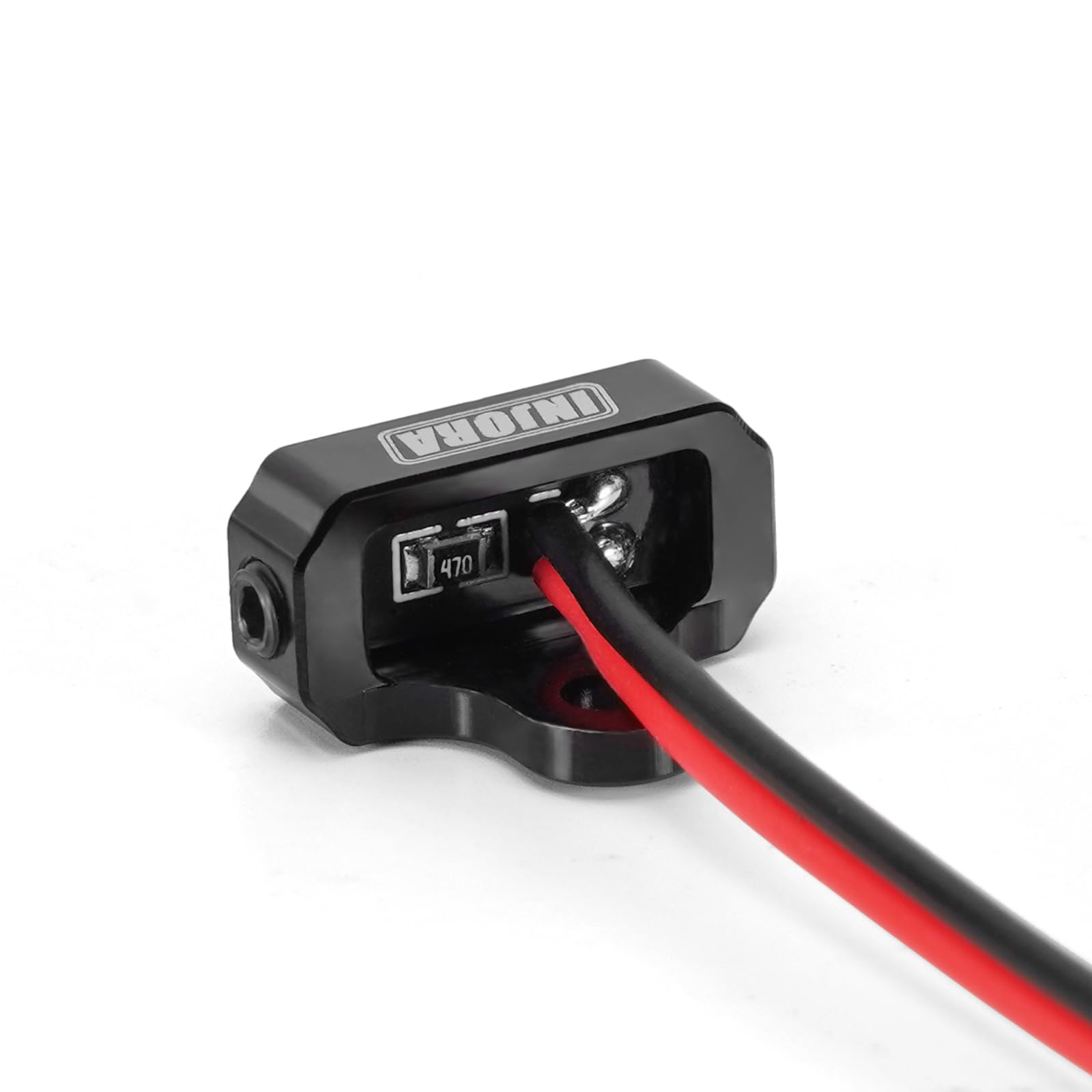

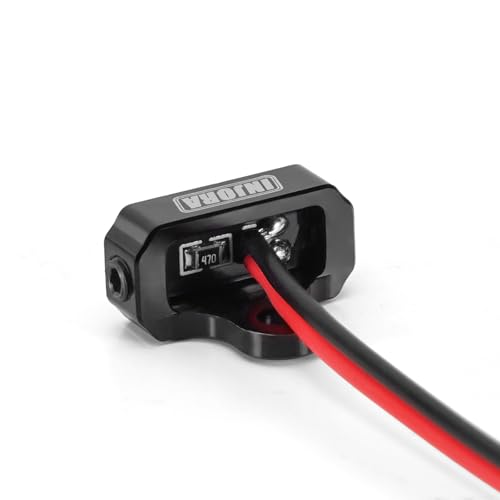

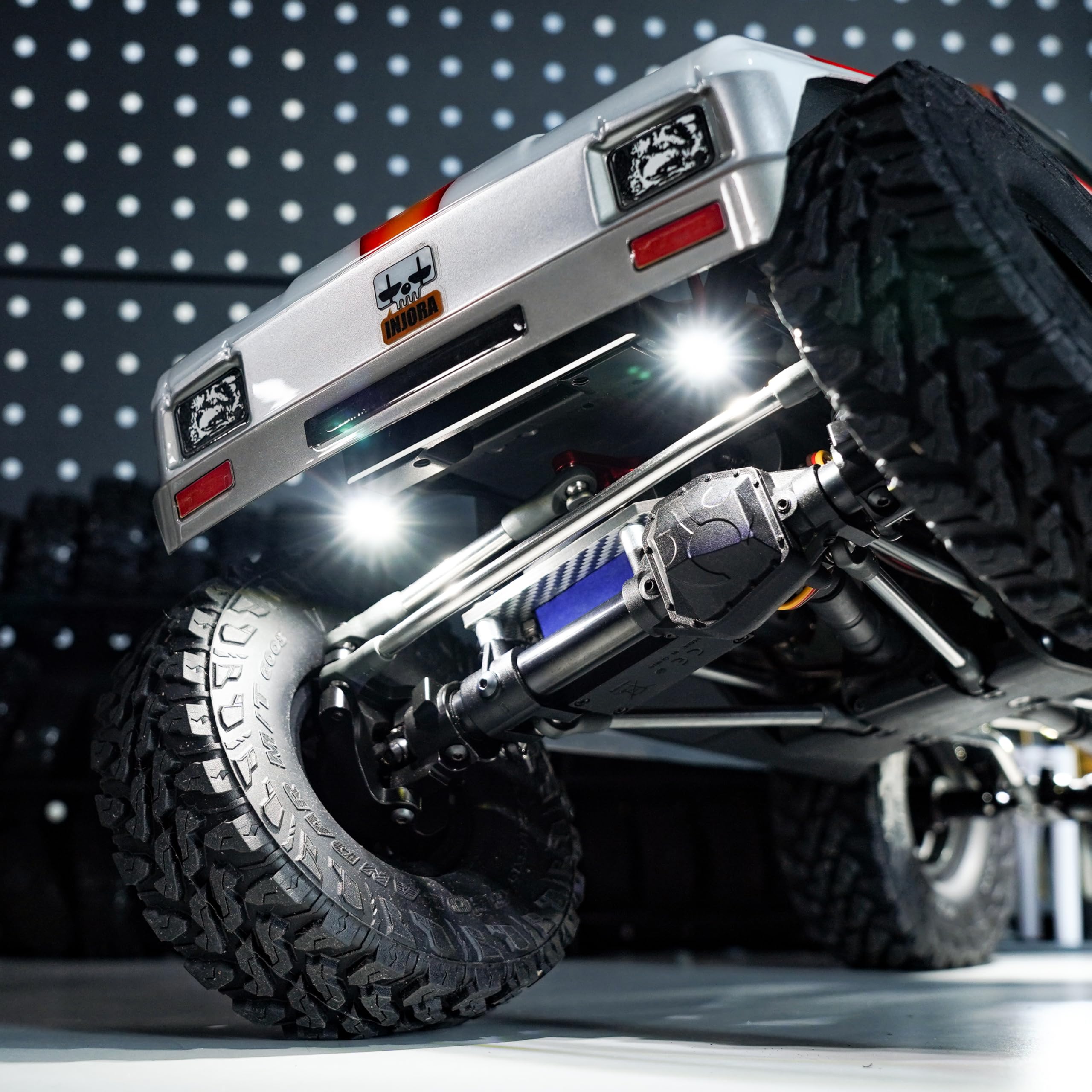

The CNC machined aluminum mounts are designed for M3 size screws, making them compatible with most 1/10 scale frames. The kit includes locking nuts and cable ties to secure the wires. The wiring is about 340mm (13.39 inches) long, giving enough reach to route the lights to the controller. The controller itself measures roughly 175mm (6.89 inches). All hardware is included, so you can mount the lights under the chassis to illuminate the ground beneath your crawler.
Technical Specifications
| LED count | 4 white LEDs |
| Mount type | CNC machined aluminum, M3 screw |
| Wire length | Approx. 340mm (13.39 in) |
| Controller length | Approx. 175mm (6.89 in) |
| Operating voltage | 5-7.4V |
| Lighting modes | Steady, breathing, strobe |
| Control | Manual controller or CH3 transmitter button |
How to control the rock lights?

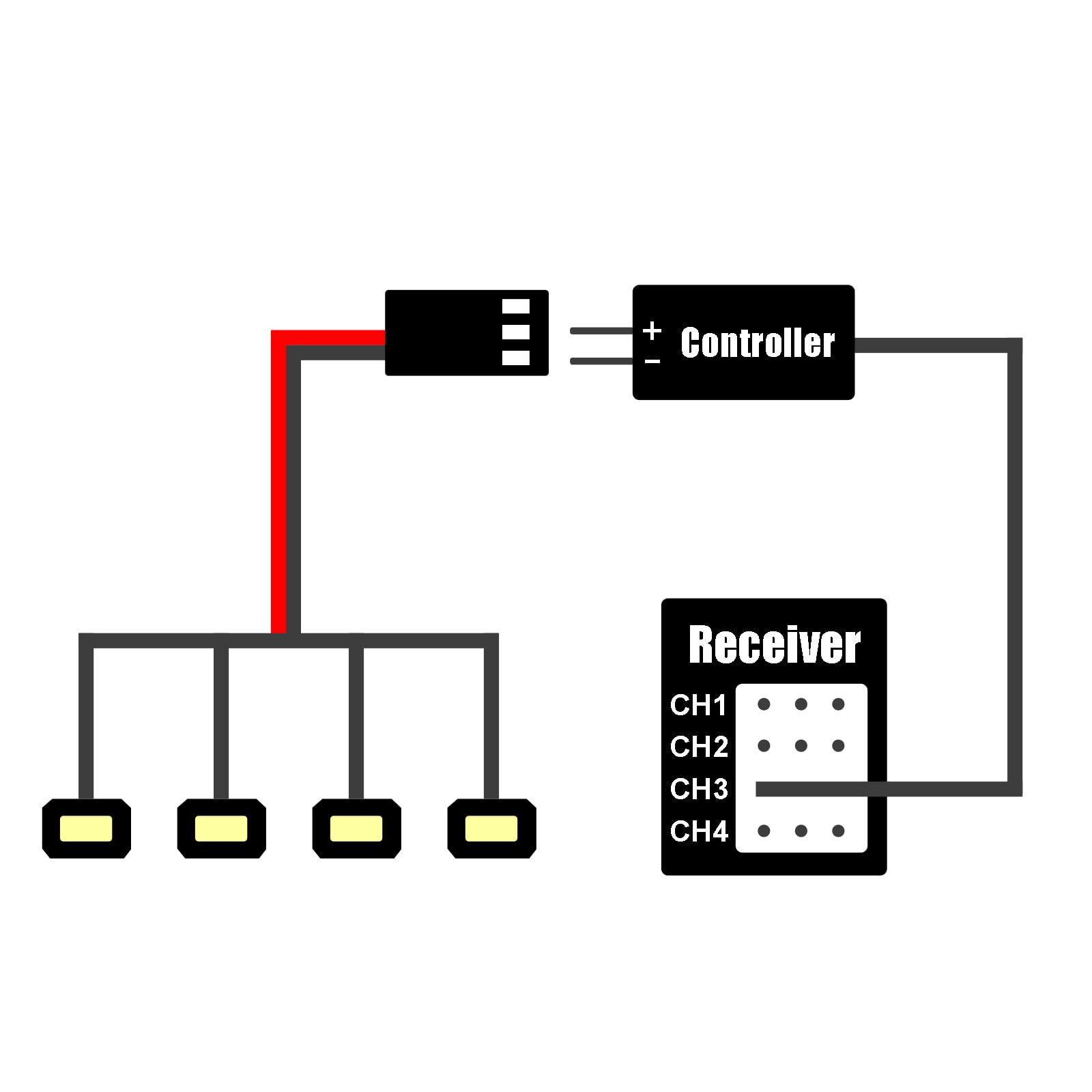

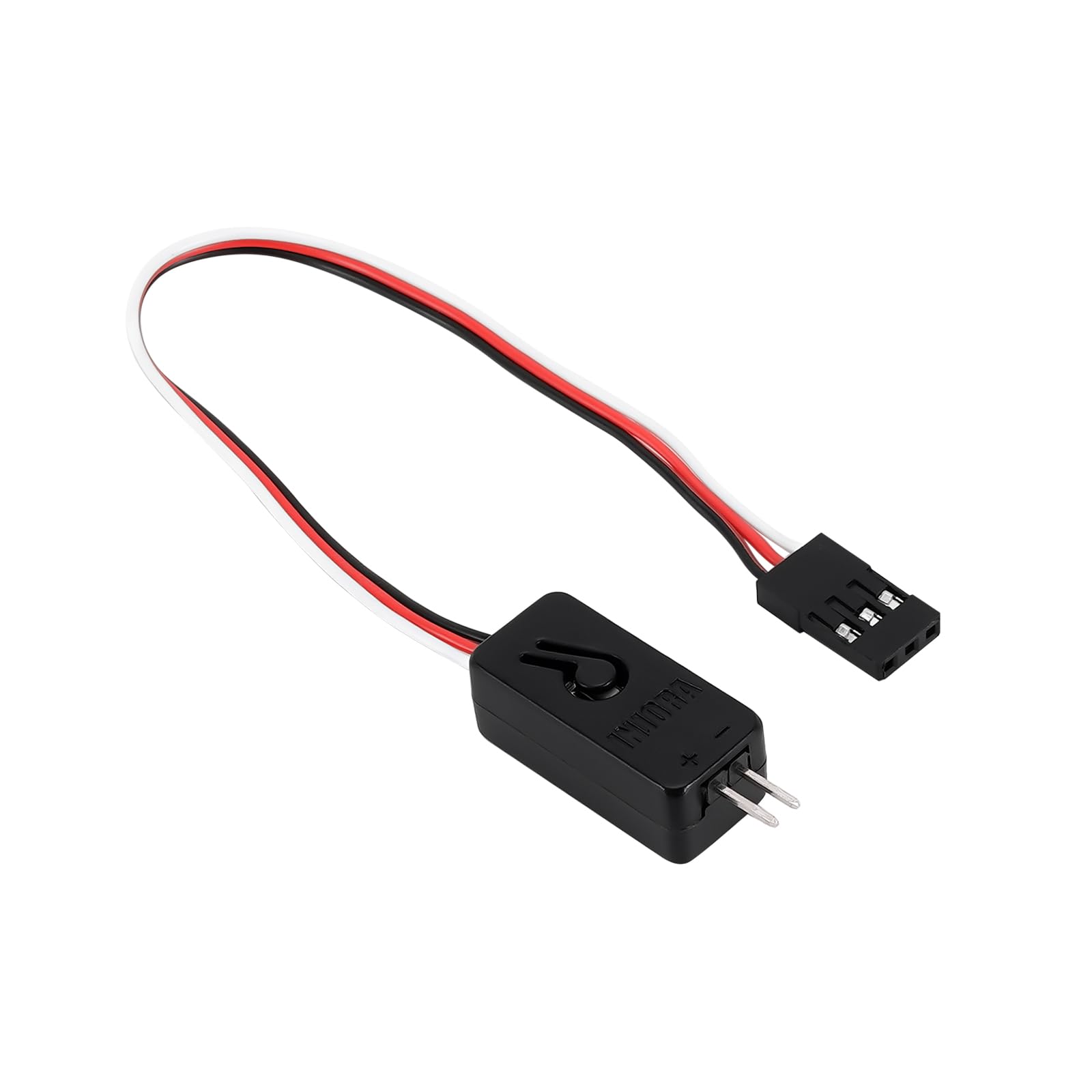

The kit includes a small controller that lets you change modes manually. Alternatively, if your transmitter has a CH3 channel, you can plug the controller into that and switch modes directly from your remote. This flexibility makes it easy to adjust the lights while driving without reaching for a separate switch.
Frequently Asked Questions
What voltage does the rock lights kit require?
The lights work on 5-7.4V, which is standard for most RC receiver outputs.
What is the wire length of the lights?
The wire from each light measures about 340mm (13.39 inches).
How do I control the lights?
You can use the included manual controller to cycle through modes, or connect it to the CH3 button on your transmitter for remote control.
