Heyiarbeit RC Antenna Tube Set - 5pcs Black Plastic Tubes with Aluminum Mounts for Boat, Vehicle
Heyiarbeit RC Antenna Tube Set - 5pcs Black Plastic Tubes with Aluminum Mounts for Boat, Vehicle
This set of 5 Heyiarbeit RC antenna tubes and mounts provides a protective housing for the fragile receiving antenna on RC boats, vehicles, and other models. Each black plastic tube measures 320mm long with a 1.5mm inner diameter and 3mm outer diameter, while the silver aluminum alloy mount has an M6 thread for secure attachment.

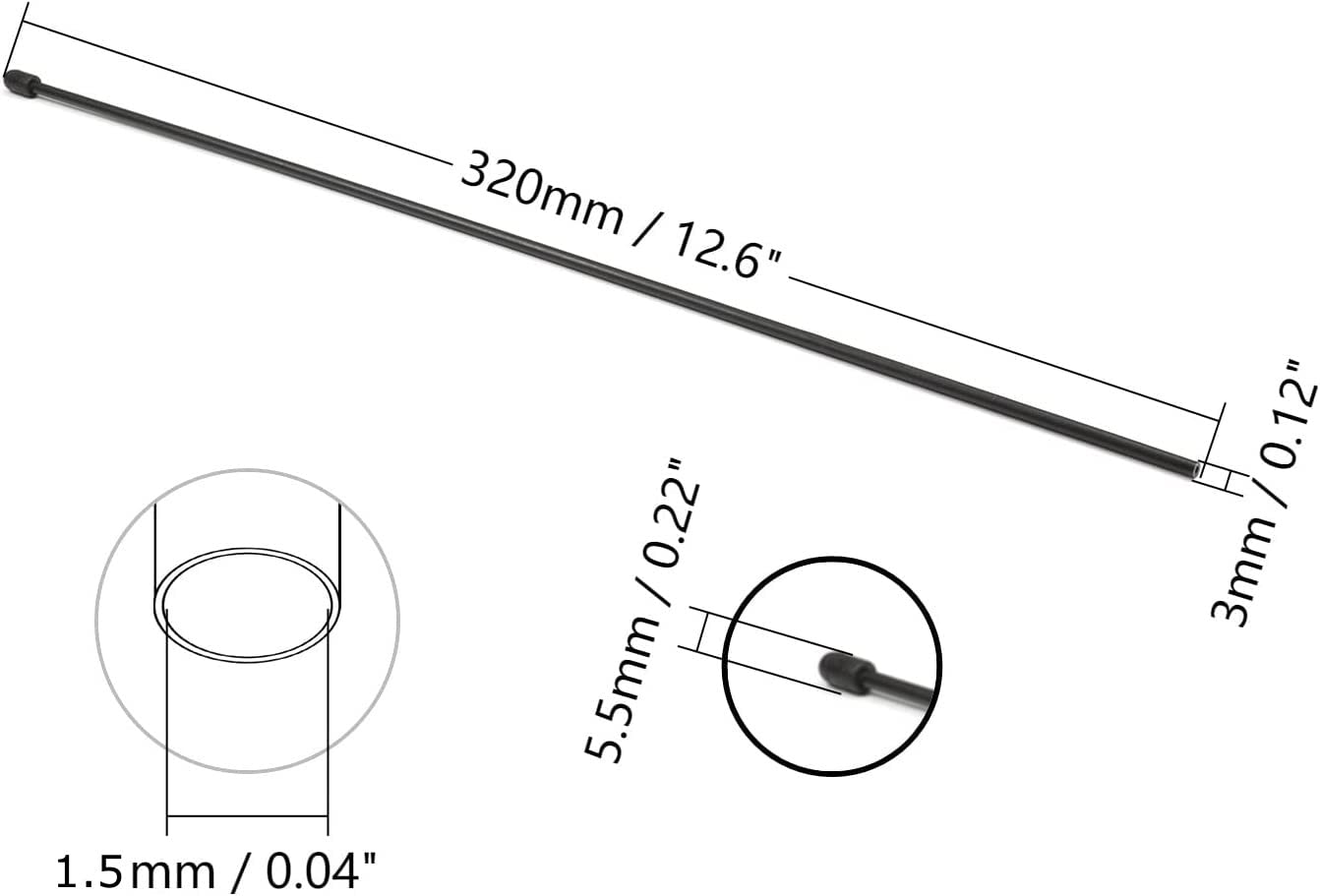

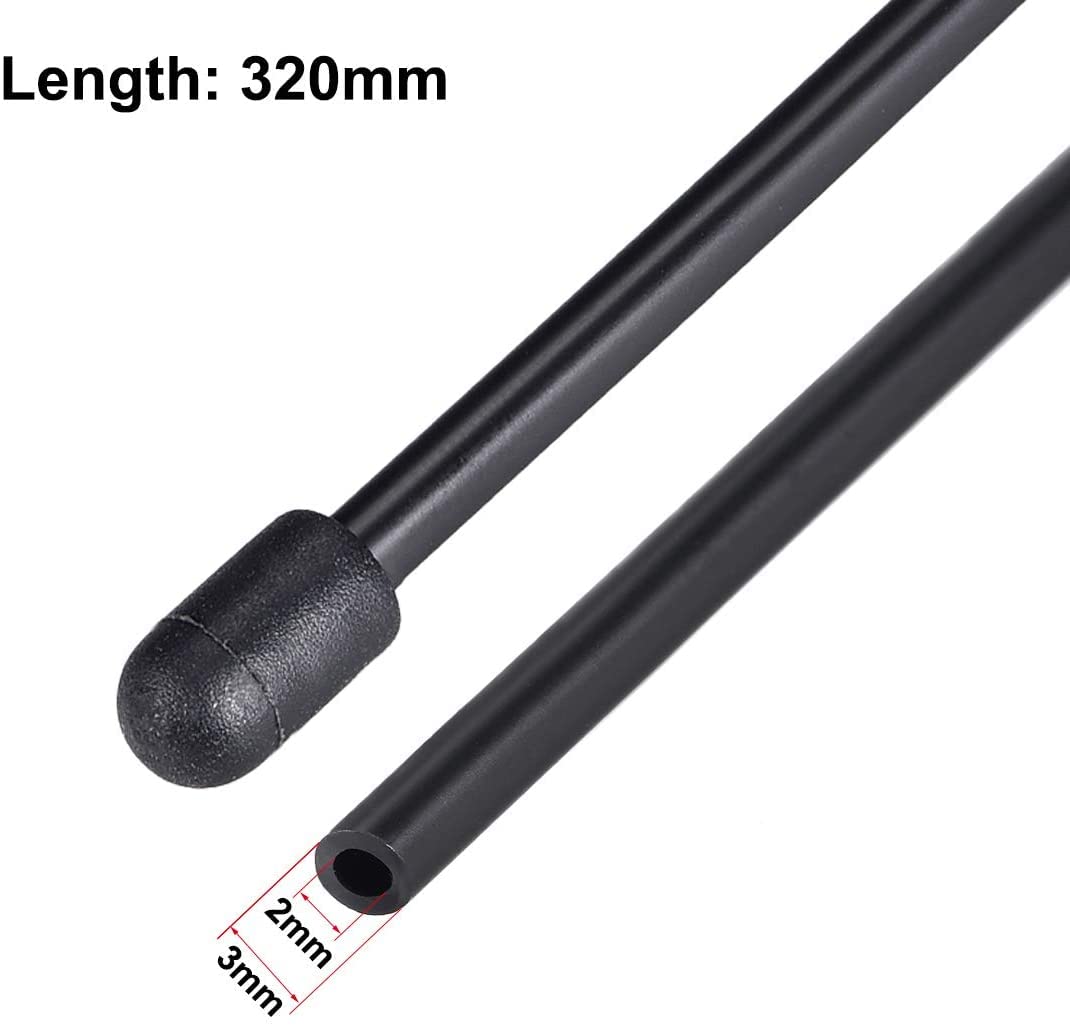

Technical Dimensions
| Tube Inner Diameter | 1.5 mm (0.06 in) |
| Tube Outer Diameter | 3 mm (0.12 in) |
| Tube Length | 320 mm (12.60 in) |

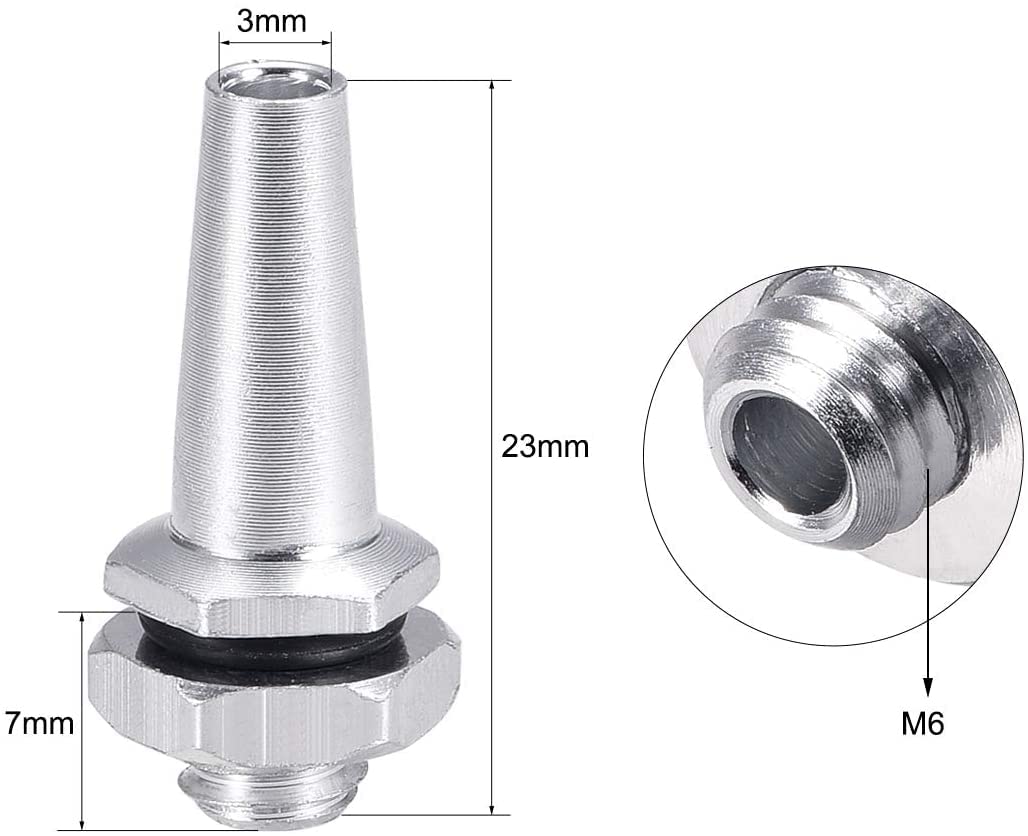

| Mount Inner Diameter | 3 mm (0.12 in) |
| Mount Thread | M6 |
| Mount Thread Length | 7 mm (0.28 in) |
| Mount Total Length | 23 mm (0.91 in) |
| Mount Hex Size (side to side) | 10 mm (0.39 in) |
| Material | Plastic tube, Aluminum alloy mount |
| Color | Black tube, Silver mount and cap |
| Model | MV-TXZ |
How does the antenna tube protect your RC receiver antenna?
The plastic tube acts as a sturdy shield around the delicate wire antenna. It prevents the propeller from cutting the antenna during operation and provides a buffer if the model collides with obstacles. The aluminum mount holds the tube at a proper angle to maintain signal strength.

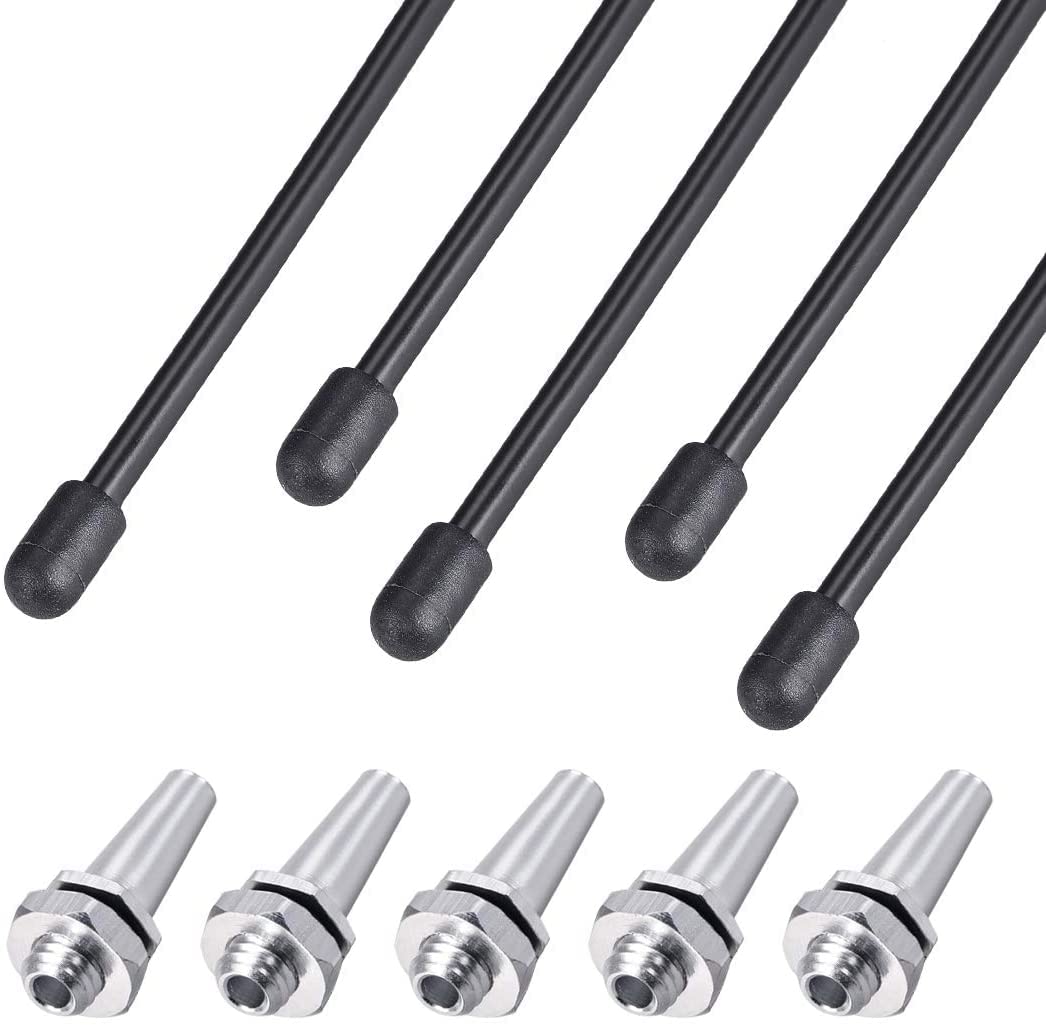

What's included in the package?
- 5 x RC antenna mounts (silver aluminum alloy)
- 5 x antenna tubes (black plastic with cap)
Build and material details
The mount is machined from aluminum alloy, making it waterproof, wear-resistant, and corrosion-resistant. The plastic tube is flexible yet strong enough to withstand impacts without breaking. You can trim the tube to a custom length using standard scissors or a hobby knife.
Frequently asked questions
Can I cut the tube to a shorter length?
Yes, the plastic tube is easy to trim. Cut it with scissors or a knife to fit your specific antenna length.
Does the mount fit standard M6 threads?
The mount has an M6 thread, so it is compatible with any RC model that uses a 6mm threaded antenna mount.
Is the tube flexible?
Yes, the plastic material provides good flexibility, which helps absorb shocks and prevents breakage during rough use.
Note: These are small parts. Keep away from children to avoid choking hazards.
