HAWK'S WORK 2212 920KV Brushless Motor for RC Plane and Multirotor Drones – Pre-Soldered, Balanced
HAWK'S WORK 2212 920KV Brushless Motor for RC Plane and Multirotor Drones – Pre-Soldered, Balanced
The HAWK'S WORK 2212 920KV brushless motor is a 52-gram, 2-4S compatible motor designed for RC planes, 330‑550‑class multirotors, and DJI Phantom upgrades. It features a 920KV rating, 8–10 inch prop support, and pre-soldered 3.5mm bullet connectors for tool‑free installation. Ideal for hobbyists building or upgrading F450, F550, S500, and similar frames.
What Makes the 2212 920KV Motor Suitable for Your Build?
This motor uses high-quality bearings and silicon steel laminations to run smoothly and quietly. Every unit passes a dynamic balance test to minimize vibration at high RPM. The pre‑soldered 3.5mm bullet connectors eliminate the need for soldering, letting you install it in minutes. The dual hole‑pitch pattern (16 mm and 19 mm) fits most common motor mounts. With a 920KV rating, it pairs well with 8–10 inch propellers on 2–4S batteries, offering a balanced setup for many medium‑size models.

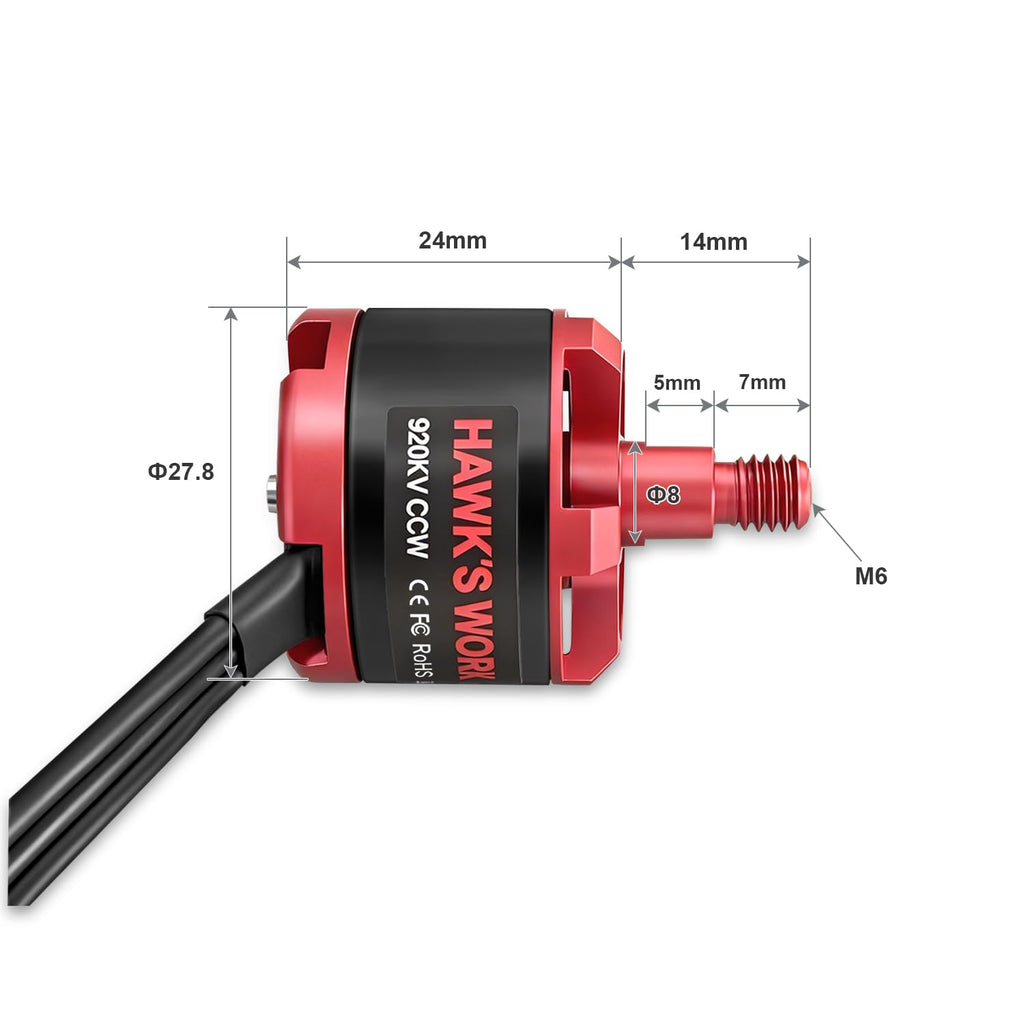

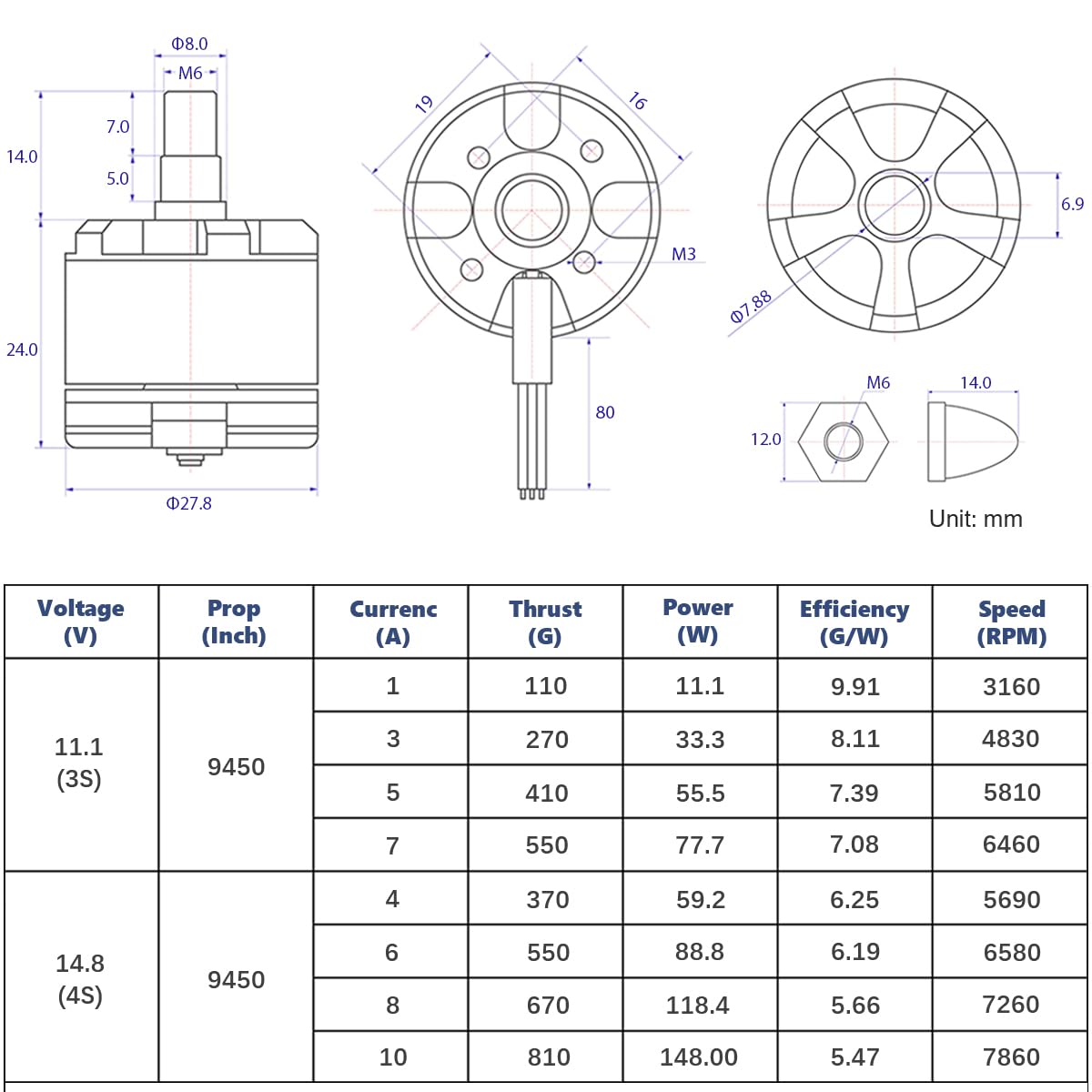

Measured Specs and Dimensions
| KV Rating | 920 |
| Voltage Range | 7.4 – 14.8 V (2–4S LiPo) |

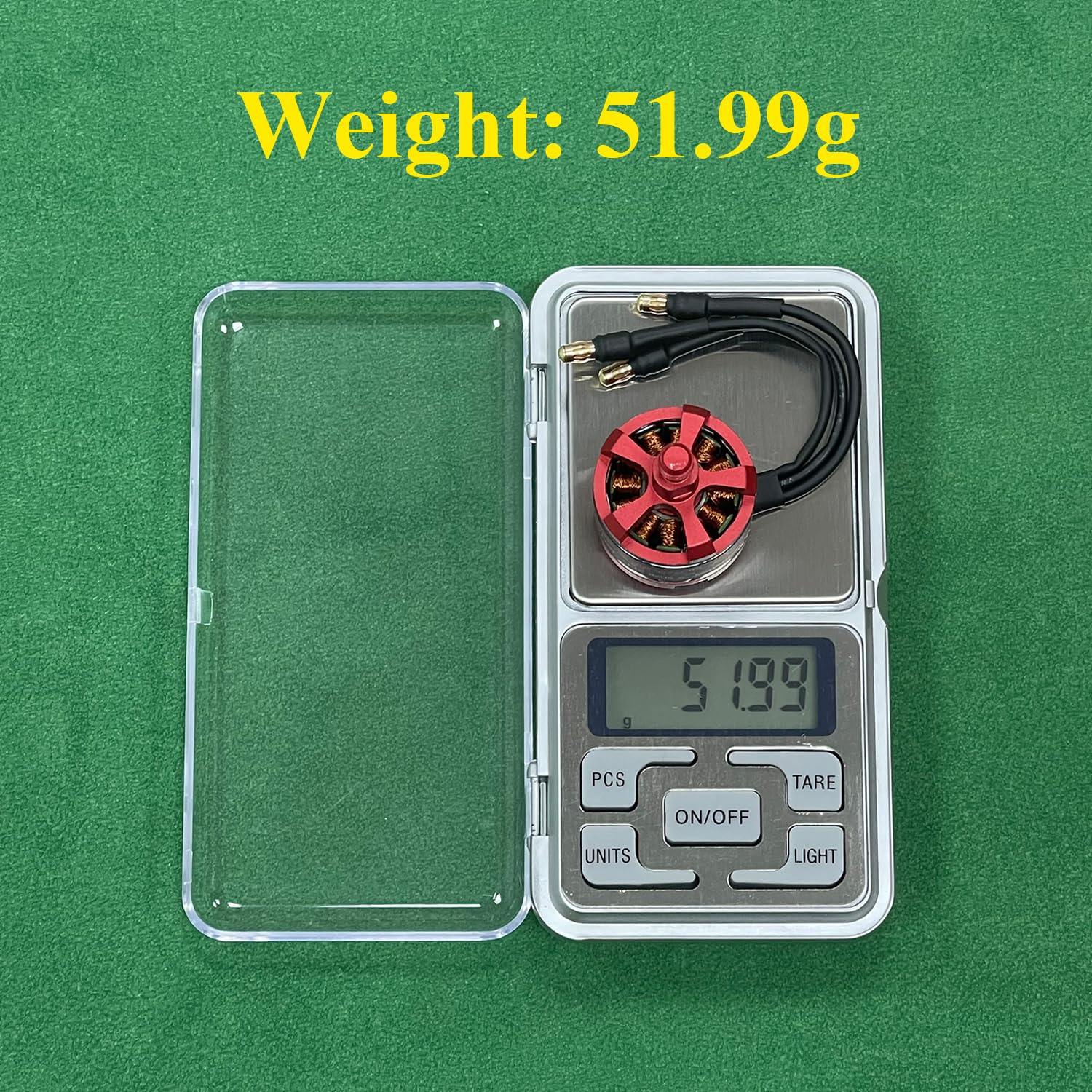

| Weight | 52 g |

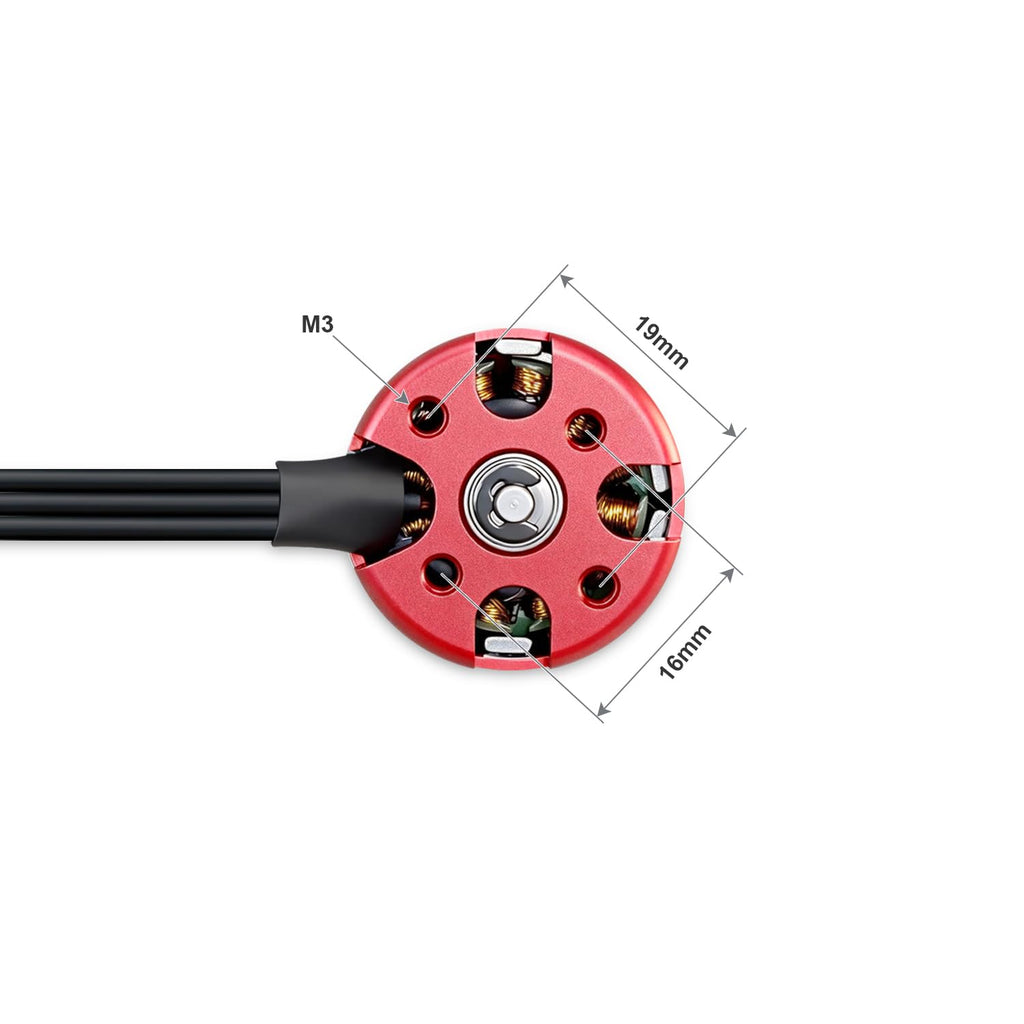

| Mounting Hole Pitch | 16 mm / 19 mm |

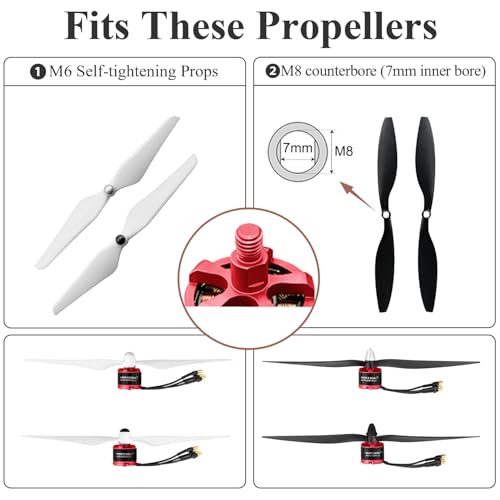

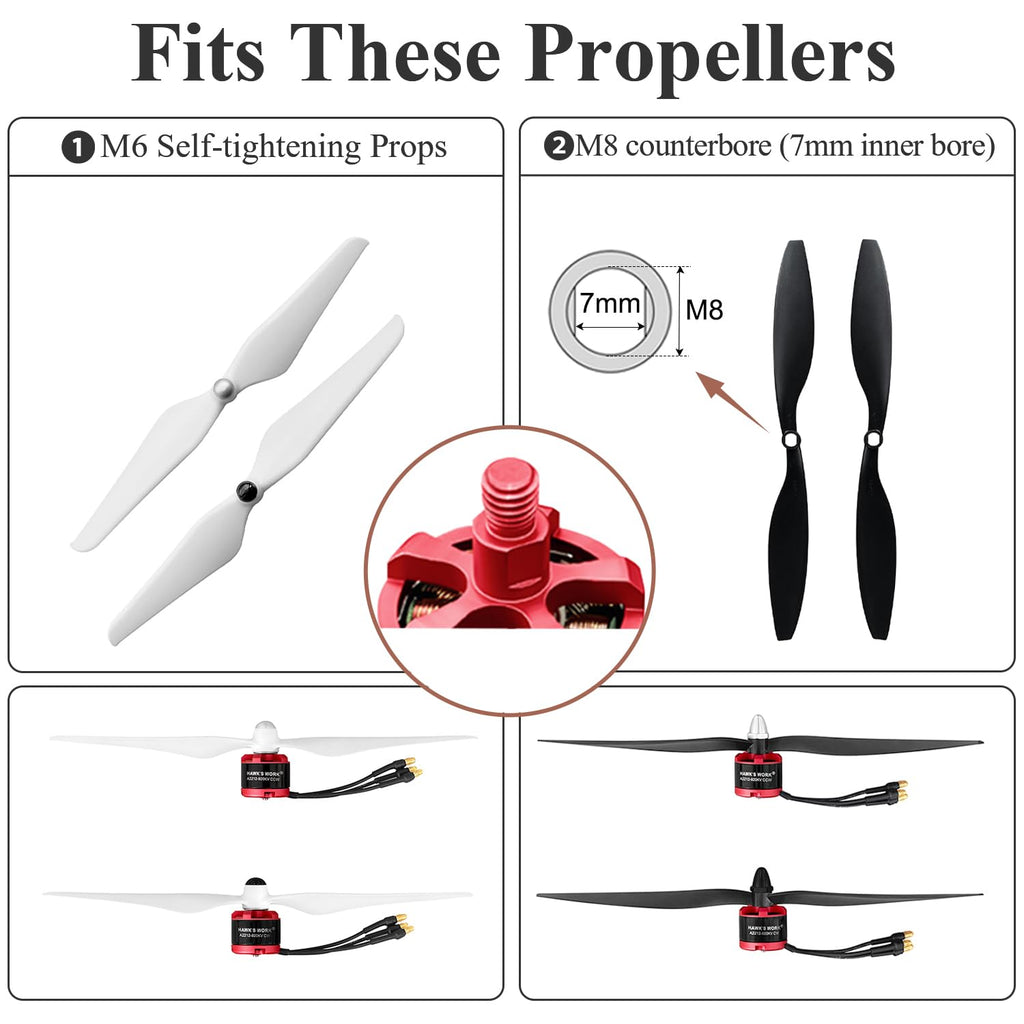

| Recommended Propeller | 8 – 10 inch |

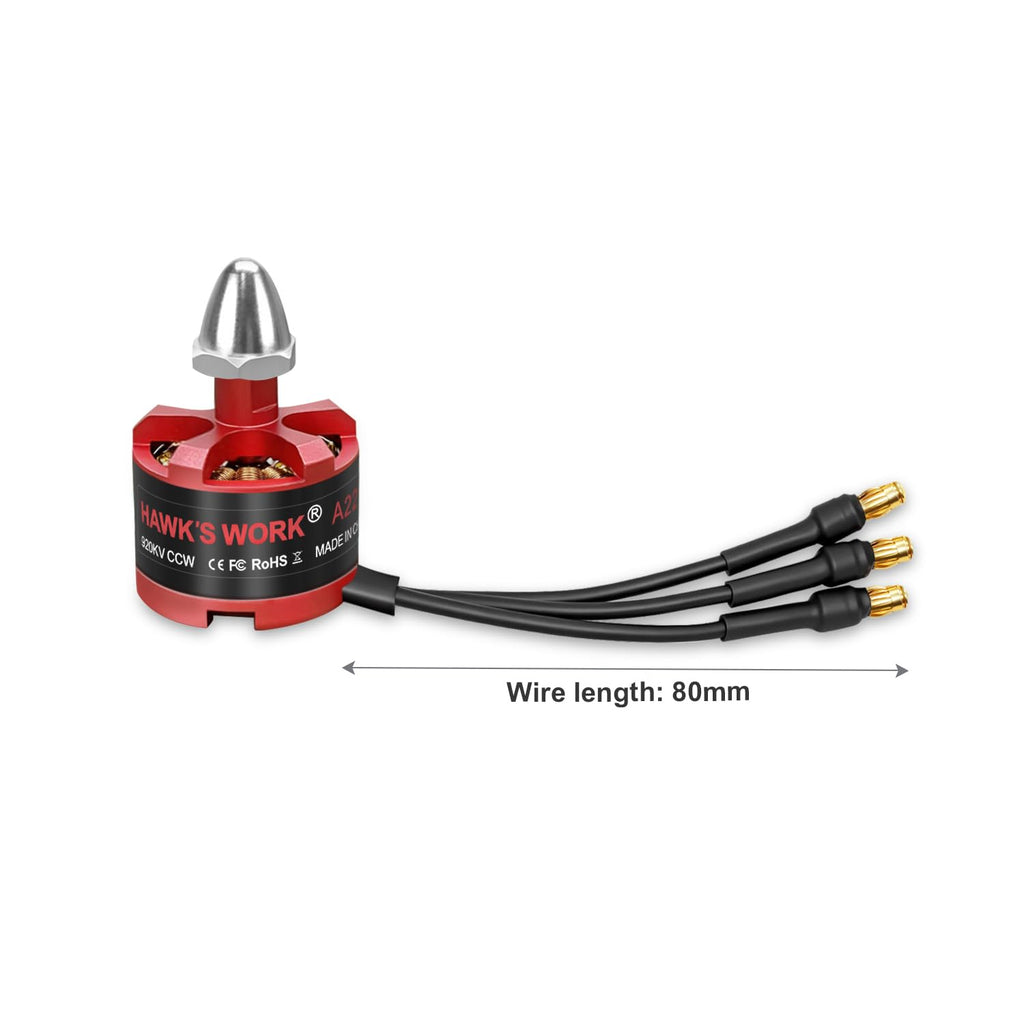

| Connector Type | 3.5 mm bullet (pre‑soldered) |

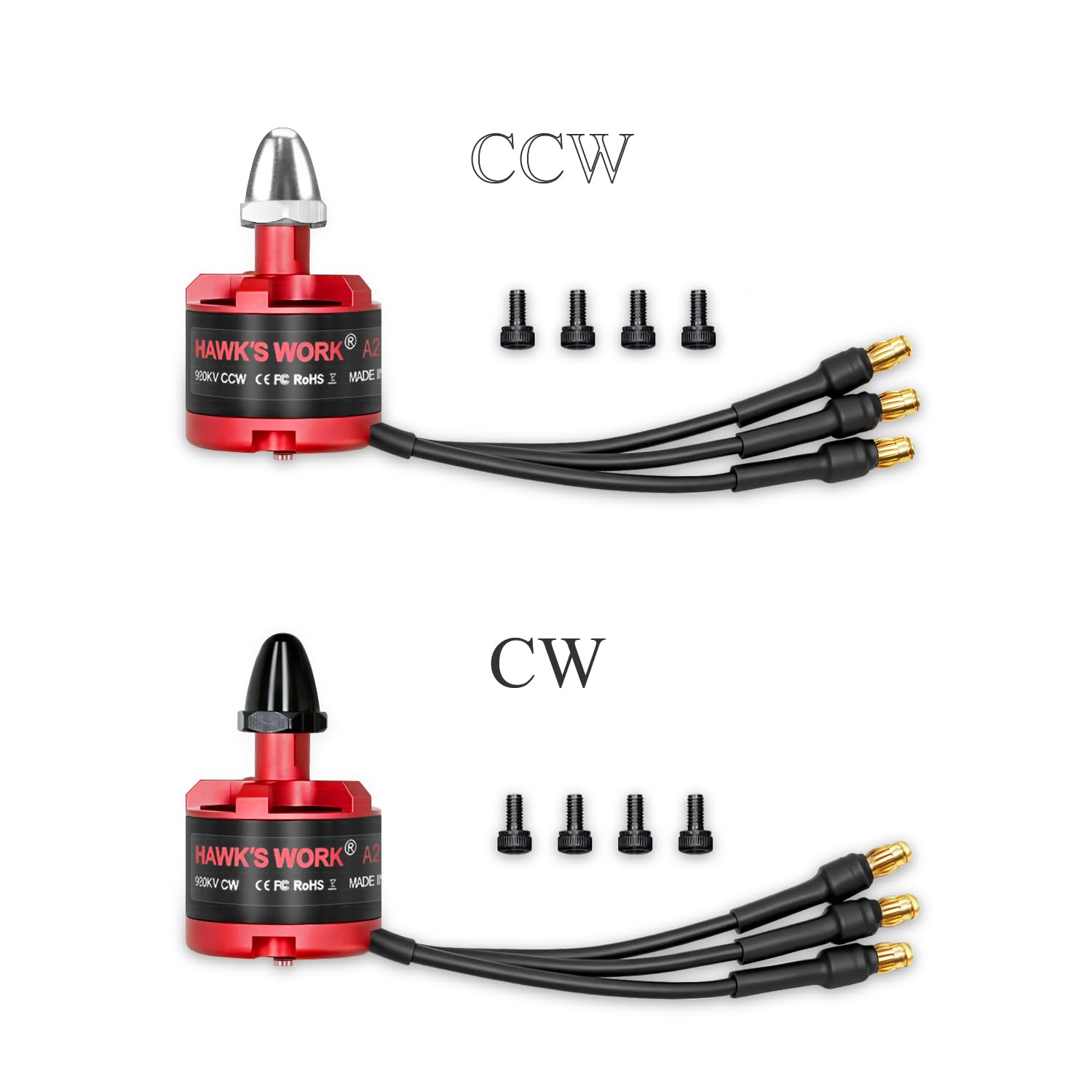

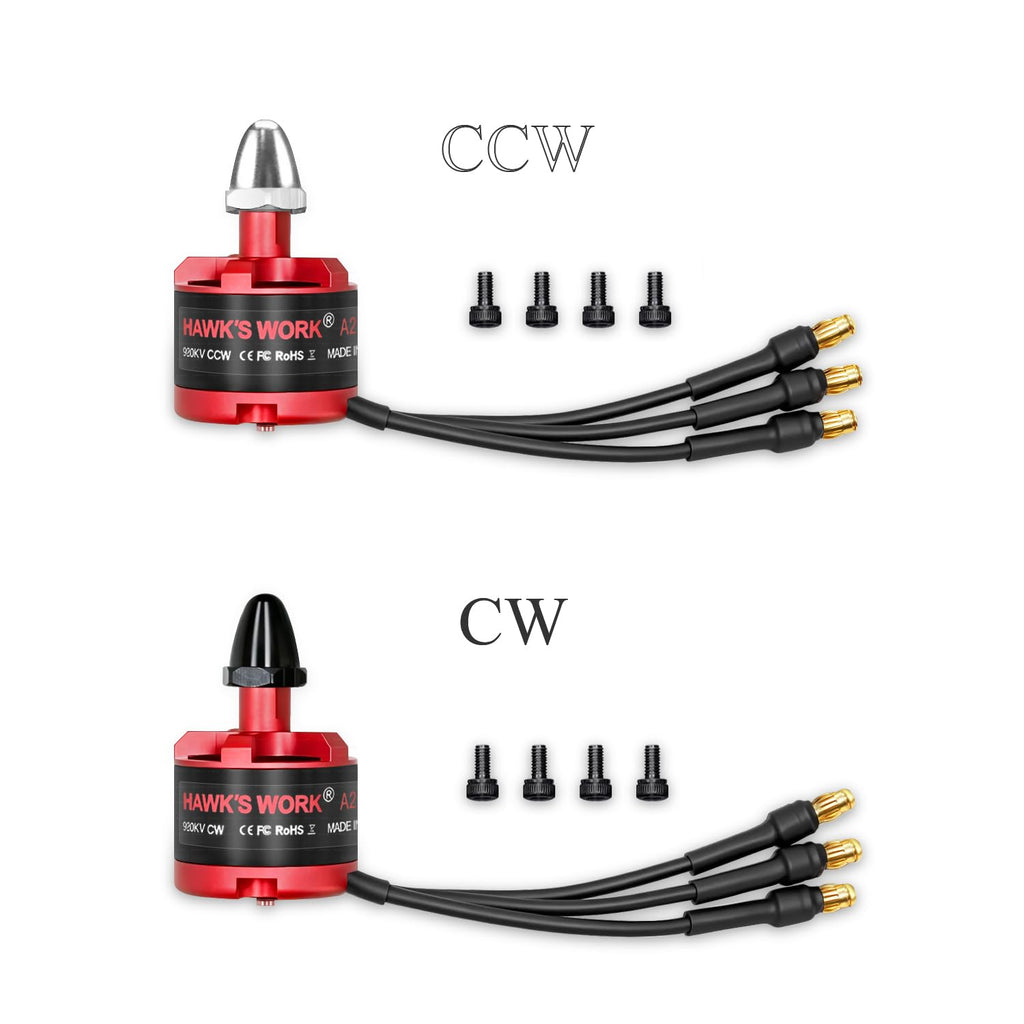

| Item Count | 1 motor (CW rotation) |
Which RC Models Work Best with This Motor?
It suits fixed‑wing aircraft, DIY quadcopters (F330, F450, F550, S500, S550, X525), and even DJI Phantom conversions. The 920KV provides a good balance of torque and speed for 8–10 inch props on 3S or 4S batteries, making it a versatile choice for medium‑sized electric models.
Common Questions About the HAWK'S WORK 2212 Motor
Does it come with mounting screws or prop adapters?

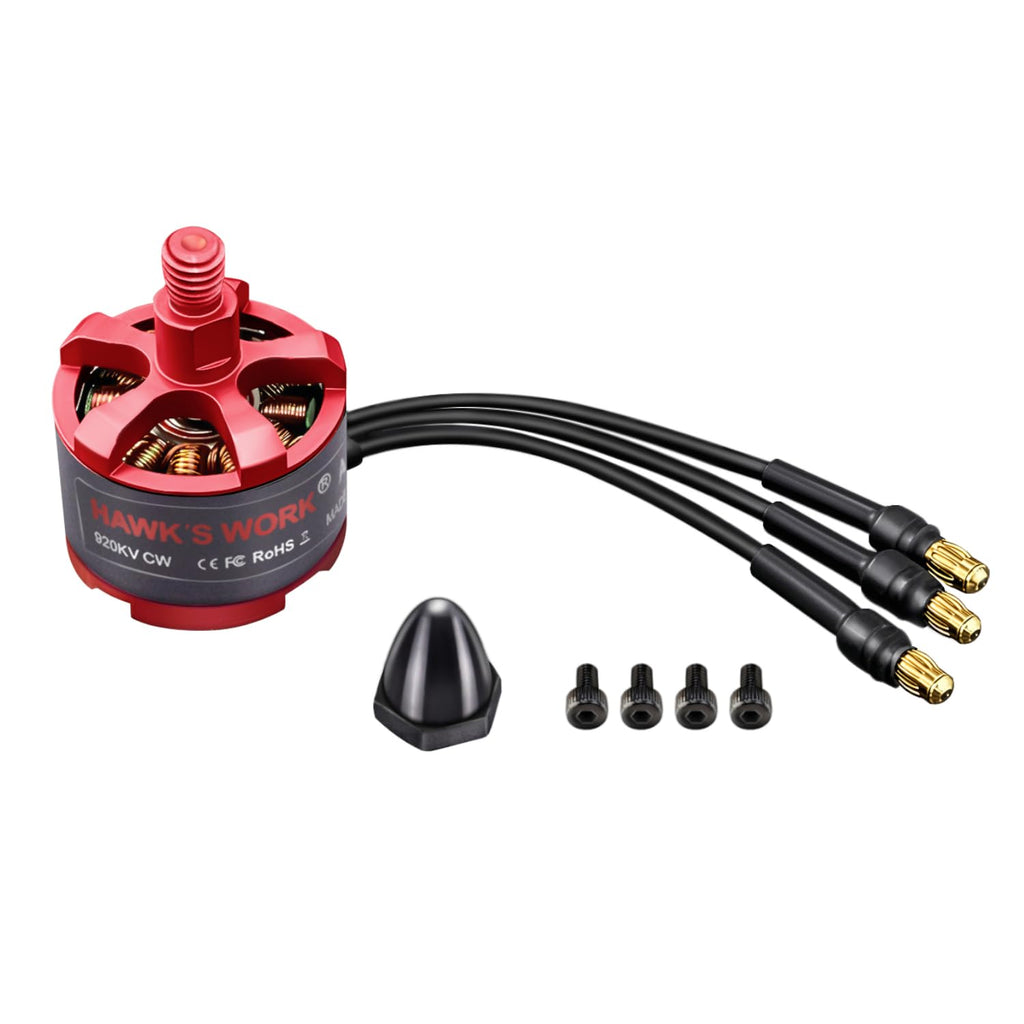

The product includes one CW‑rotation motor with pre‑soldered bullet connectors. Mounting hardware and prop adapters are not supplied — check your frame’s requirements.
Is this motor for quadcopters or planes only?
It is designed for both multirotors and fixed‑wing aircraft. The 16/19 mm hole pattern works on many standard motor mounts, and the 920KV is typical for medium‑speed applications.
What if I receive a defective unit?
HAWK’S WORK offers a free replacement or refund for quality problems within three months of purchase. You can contact them via the QR code included in the package.
