GoolRC 550 12T Brushed Motor with Integrated Fan for 1/10 RC Off-Road Cars
GoolRC 550 12T Brushed Motor with Integrated Fan for 1/10 RC Off-Road Cars

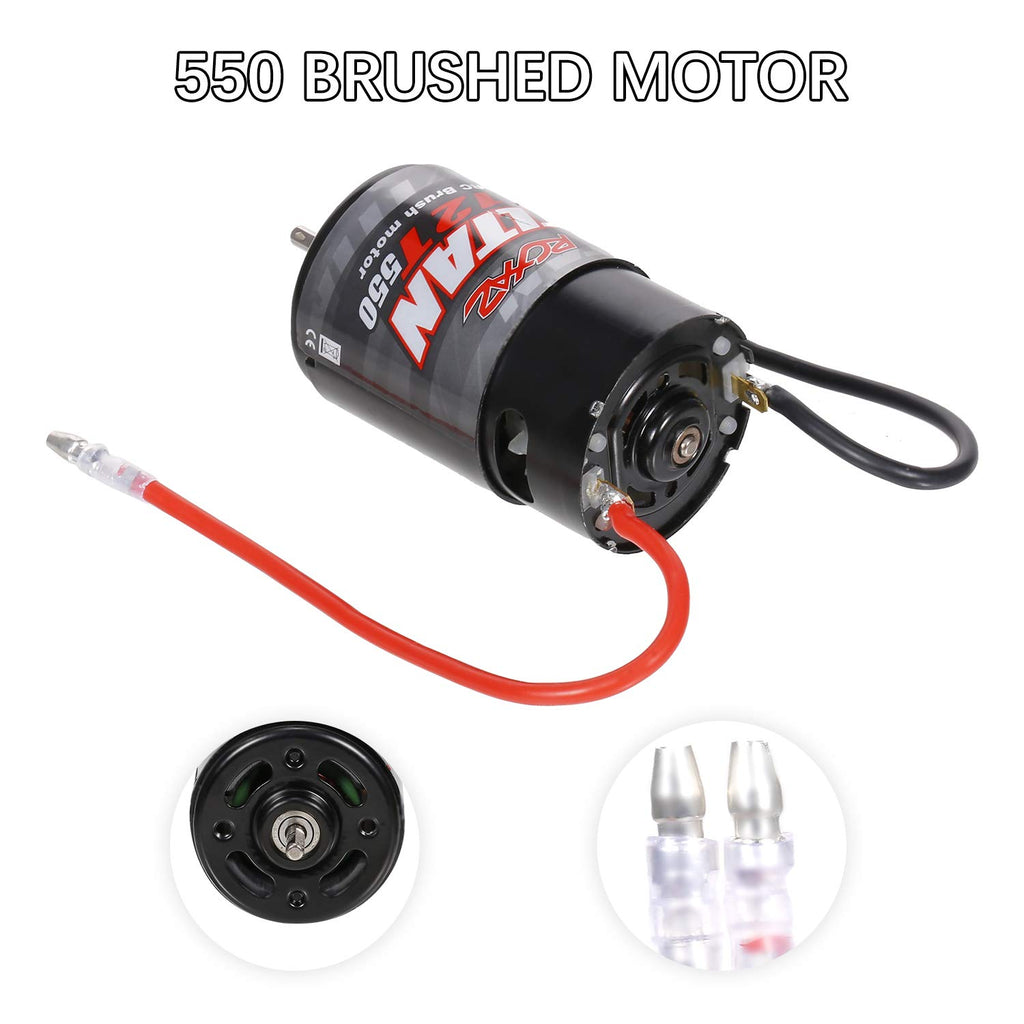

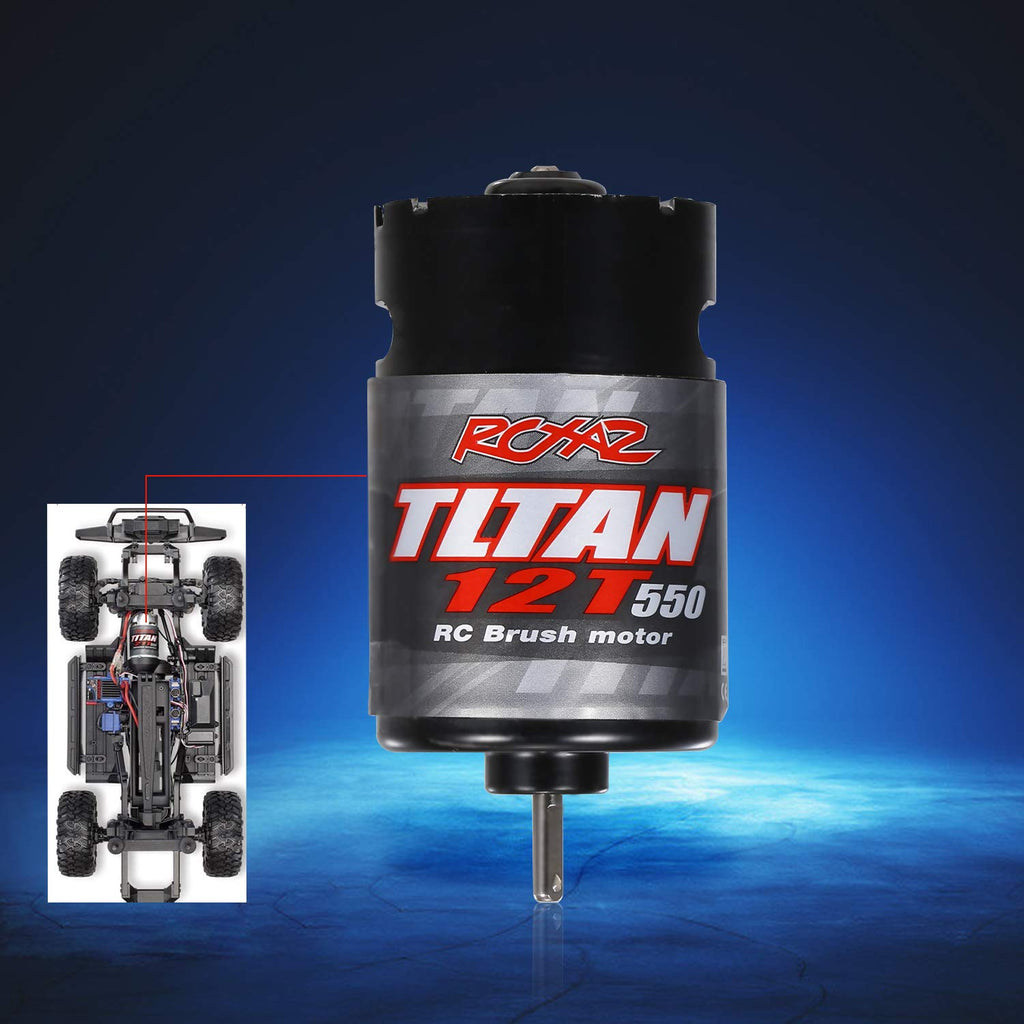

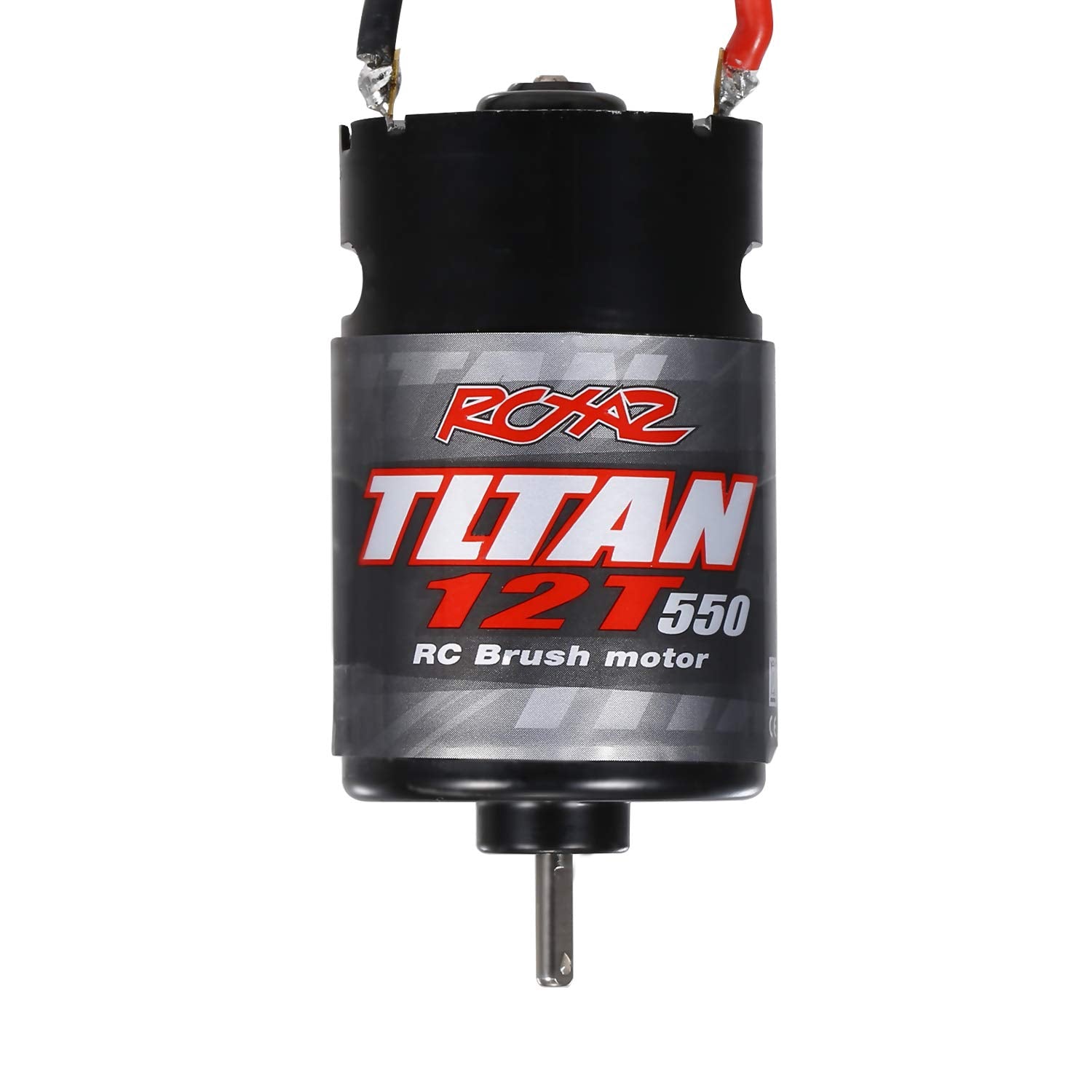

The GoolRC 550 12T brushed motor is a direct replacement for 1/10 scale off-road RC cars from brands like HSP, HPI, WLtoys, Kyosho, and Traxxas. It delivers up to 22500 RPM and 137 watts, with a 3.175mm output shaft and an integrated cooling fan to manage heat during heavy use.
Motor Specifications

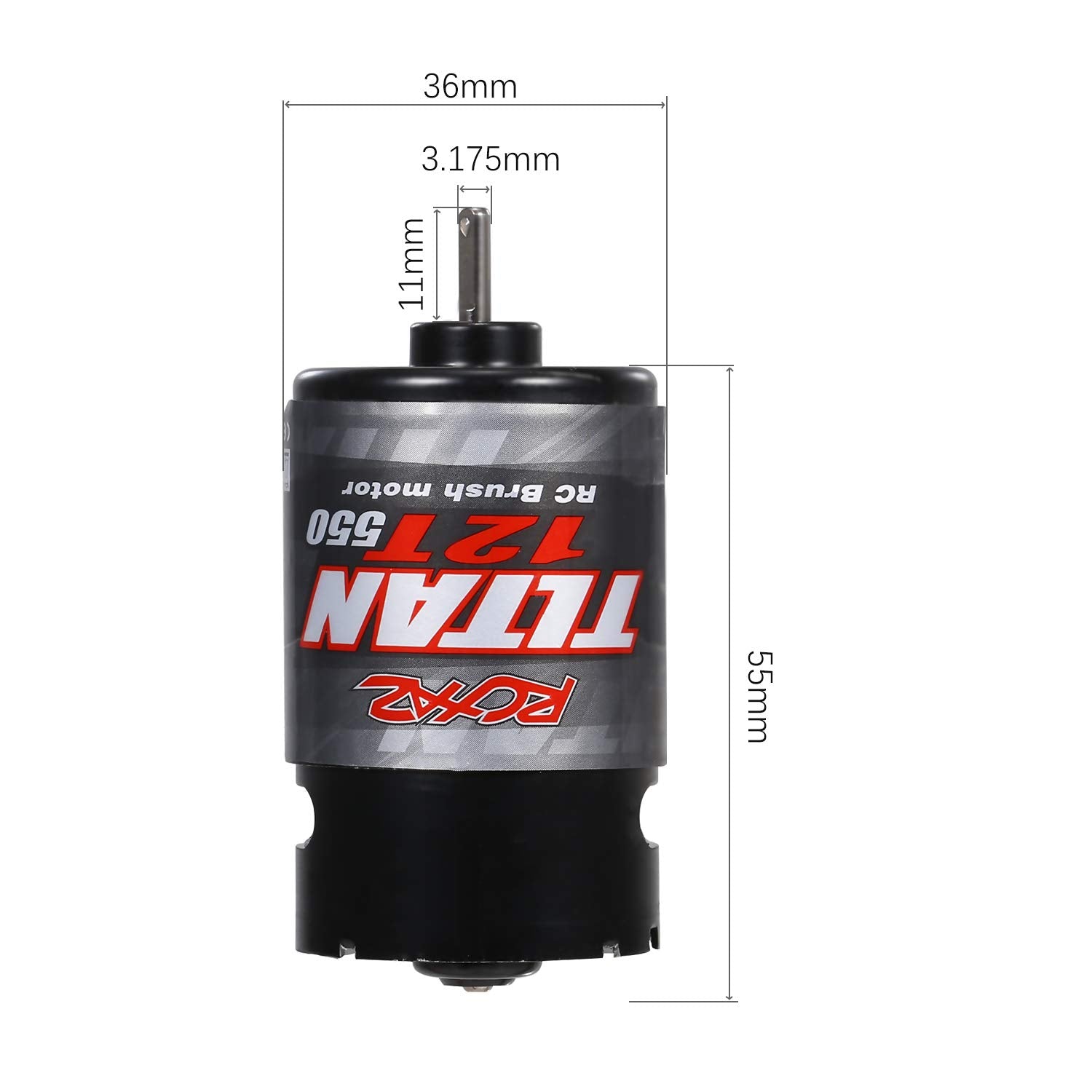

| Size | 550 (36mm diameter, 55mm length) |
| Turns | 12T |
| Maximum RPM | 22500 |
| Voltage Range | 6–8.4 V |
| Max Current | 70 A |
| Power Output | 137 W |
| No-Load Current (Io) | 1.4 A |
| Internal Resistance | 0.0043 Ω |
| Shaft Diameter | 3.175 mm |
| Extended Shaft Length | 11 mm |
| Weight | 223 g (228 g with packaging) |
| Package Dimensions | 7.5 × 4 × 4 cm |
Performance and Cooling

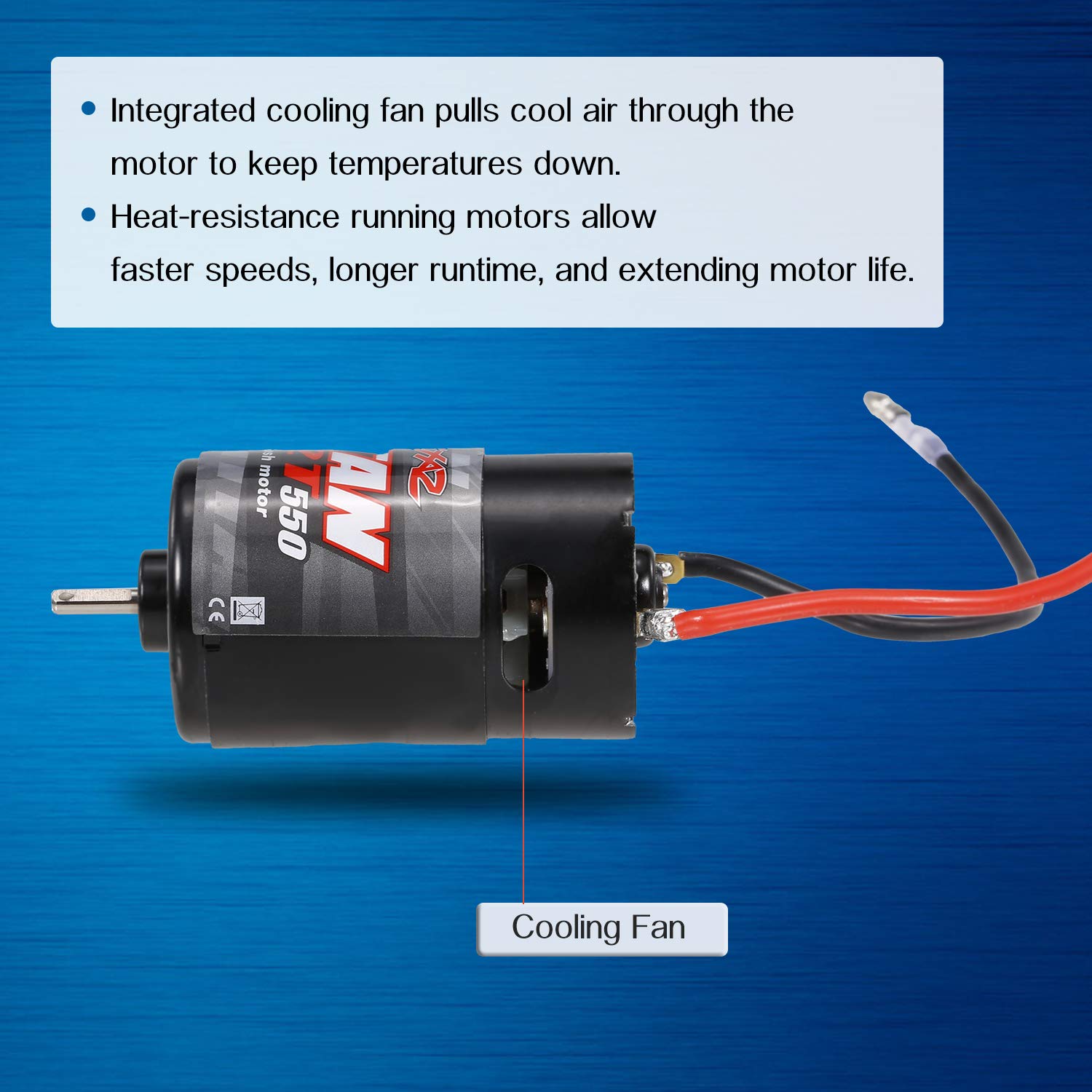

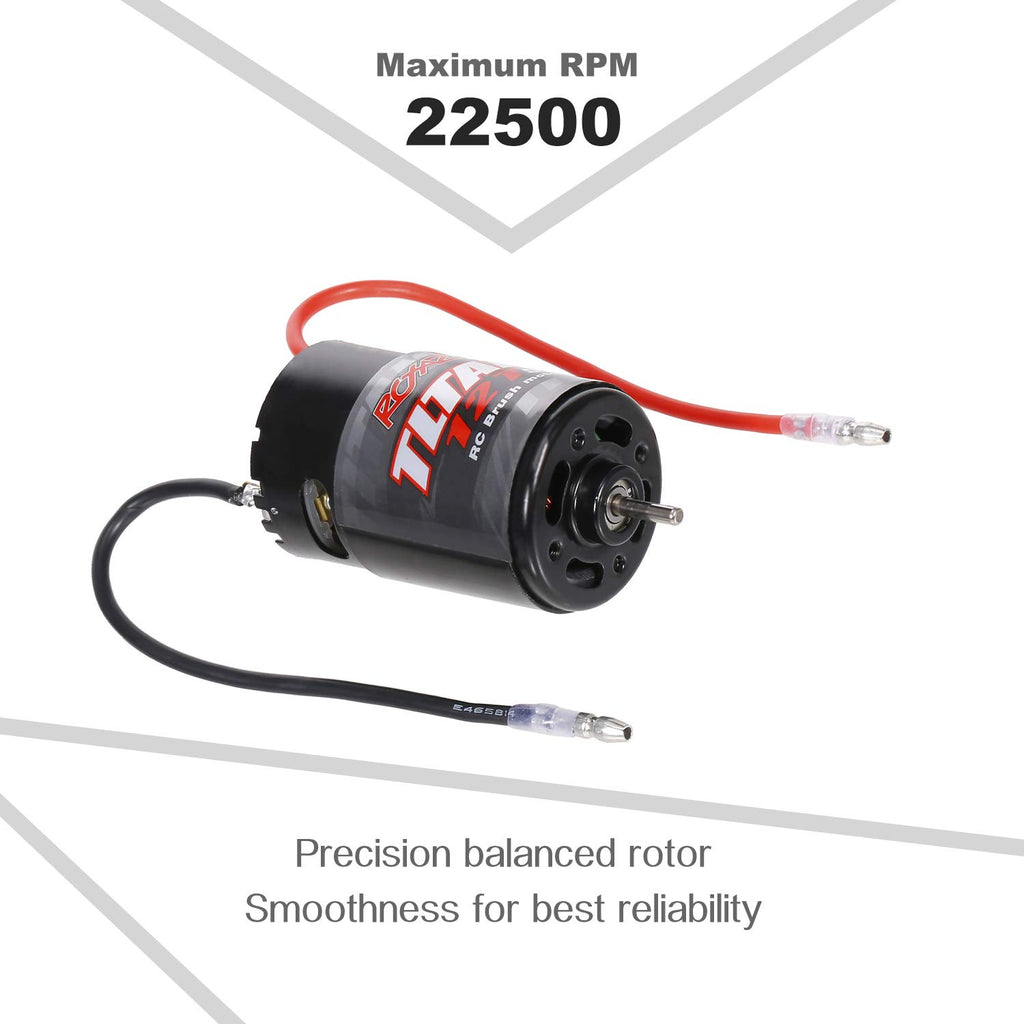

The rotor is precision balanced for smooth, reliable operation at high RPM. An integrated cooling fan pulls air through the motor to keep temperatures lower during extended runs. Heat-resistant construction helps maintain consistent performance and extends overall motor life.
Compatibility and Installation

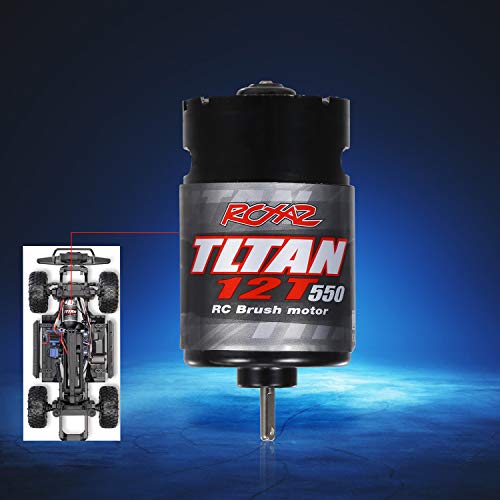

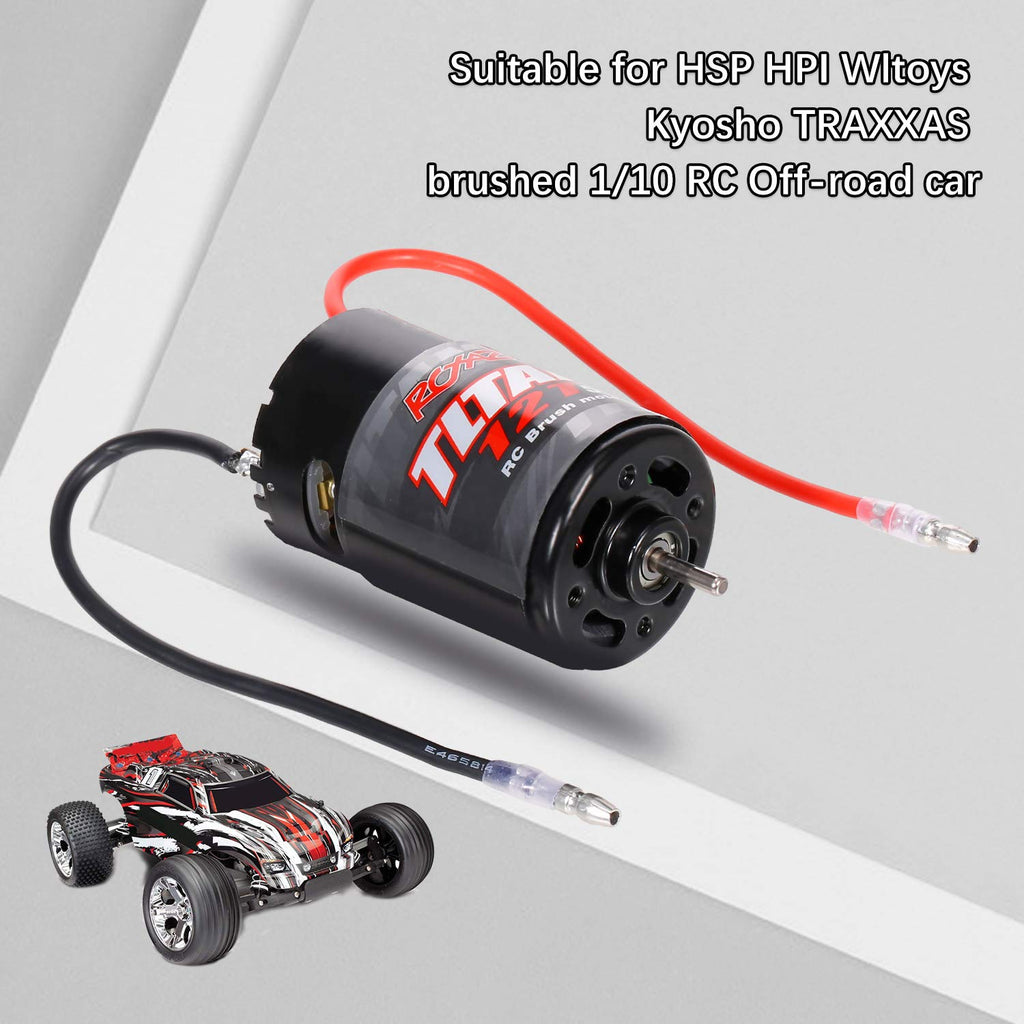

This motor is built to replace the standard 550 brushed motors found in many 1/10 scale off-road RC vehicles. It fits models from HSP, HPI, WLtoys, Kyosho, and Traxxas. The 3.175mm shaft works with common pinion gears. Virtually maintenance-free operation means you can focus on driving rather than upkeep.
What’s Included
- 1 × GoolRC 550 12T Brushed Motor
Common Questions About This Motor
What voltage can I run?
The motor is rated for 6 to 8.4 volts, compatible with standard 2S and 2S LiPo or NiMH packs.
Does it have a cooling fan?
Yes, an integrated fan pulls air through the motor to reduce heat buildup.
Will it fit my Traxxas or HSP car?
It is designed as a direct replacement for 1/10 brushed models from HSP, HPI, WLtoys, Kyosho, and Traxxas. Check your vehicle’s motor mount and gear mesh before installing.
